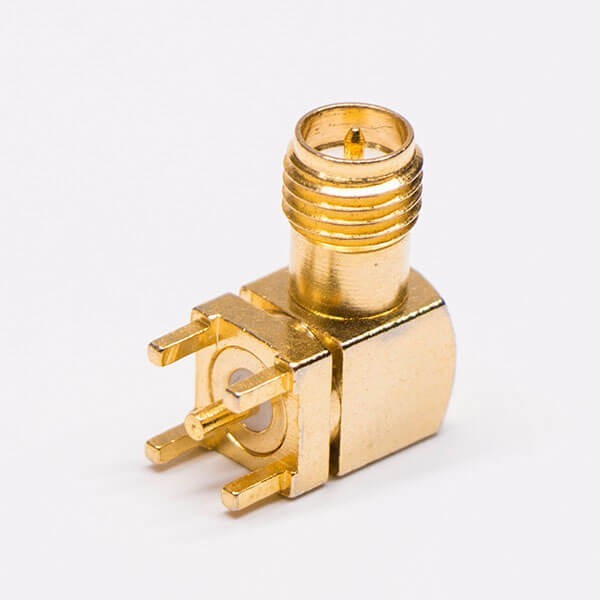

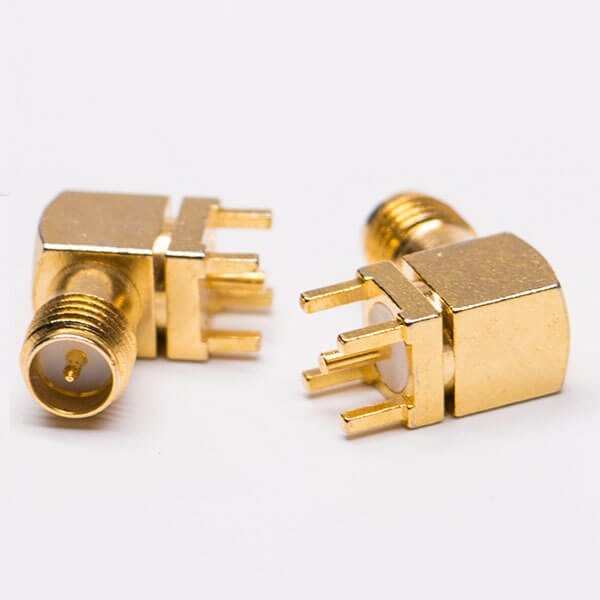

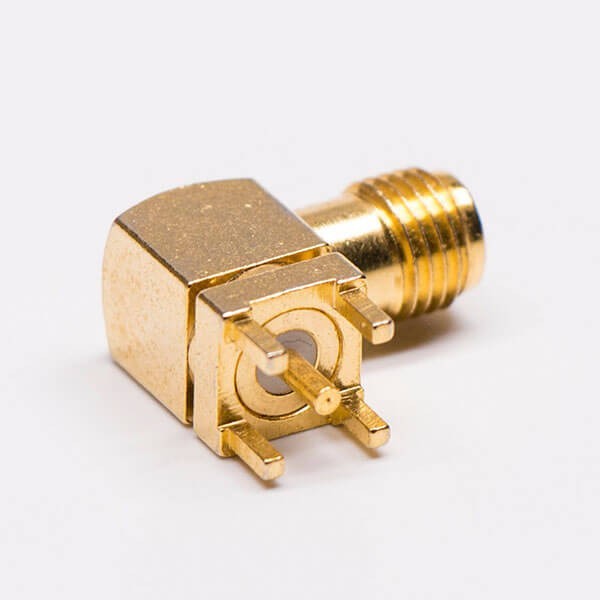

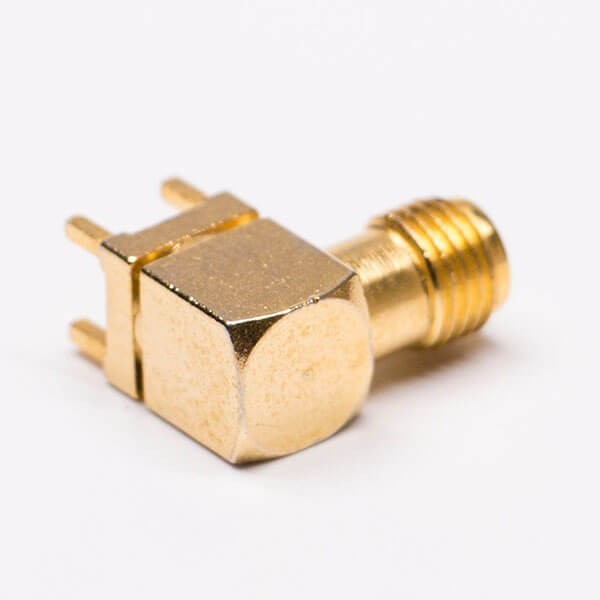

Through Hole,Pcb Mount,jack,RP, Angled/90°, 50Ω;
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.
Main Application of SMA Connectors:
Aerospace and Defense: Hand-held field Device and Instrumentation
Medical: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications:Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System
Electrical Characteristics
Impedance：50 ohm
Frequency Range: 0~6 GHz
VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
750 V rms min. for RG316, RG402
500v rms min. for RG178
Working Voltage: 500 V rms max. for RG142, RG405
375 V rms max. for RG316, RG402
170 V rms max. for RG178
Center Contact Resistance ≦ 6.0 mΩ (Milliohms max.)
Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)
Mechanical Characteristics
Coupling: 1/4-36 thread
Contact Retention: 15 in-lbs min.
Coupling nut torque: 30 in-lbs. min.
Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
Environmental Characteristics: -65°C ~ +165°C
Vibration: MIL-STD-202 Meth.204
Corrosion resistance: MIL-STD-202 Meth. 101
Material
| Part | Material | Finish | |
| Body | Brass | NI 80-120u" | |
| Insulator | TEFLON | White | |
| Center Contact Pin | Phosphor | Au:3u" | |
