Cable Experts Coaxial RG8X Wire (A.K.A Mini-8):

Offering consumers nothing but the best coaxial wire that is proudly made and manufactured in china ! Our cable is fully inspected to ensure maximum satisfaction and can be used with many applications such as amateur radio, CB radio, ham radio, switch meters, and other related electronic hobbies.

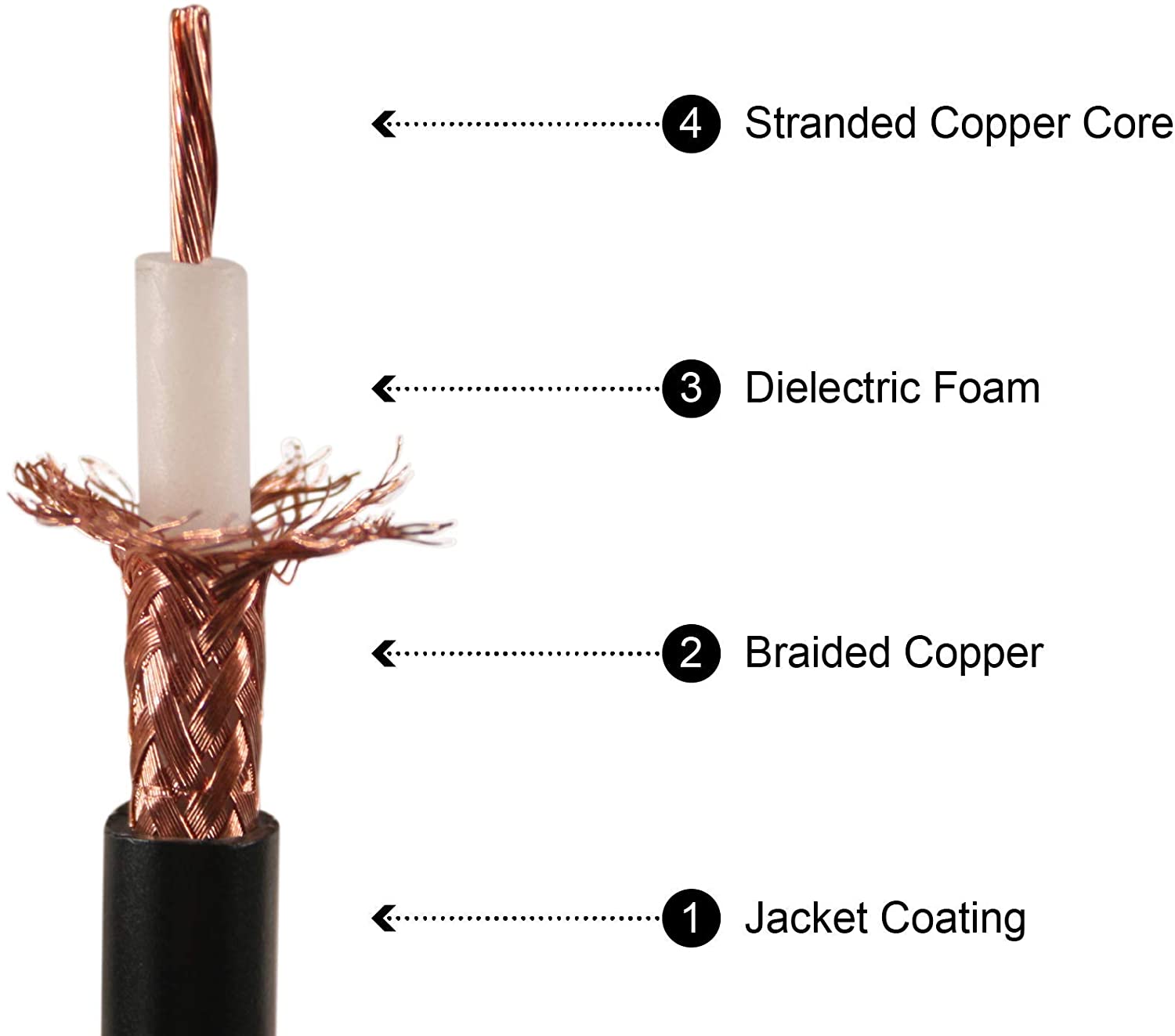

Component Breakdown:

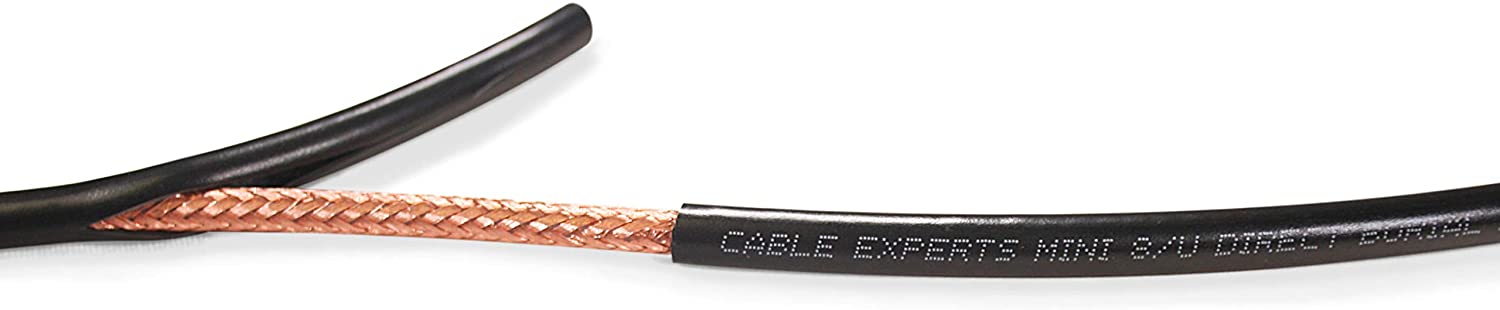

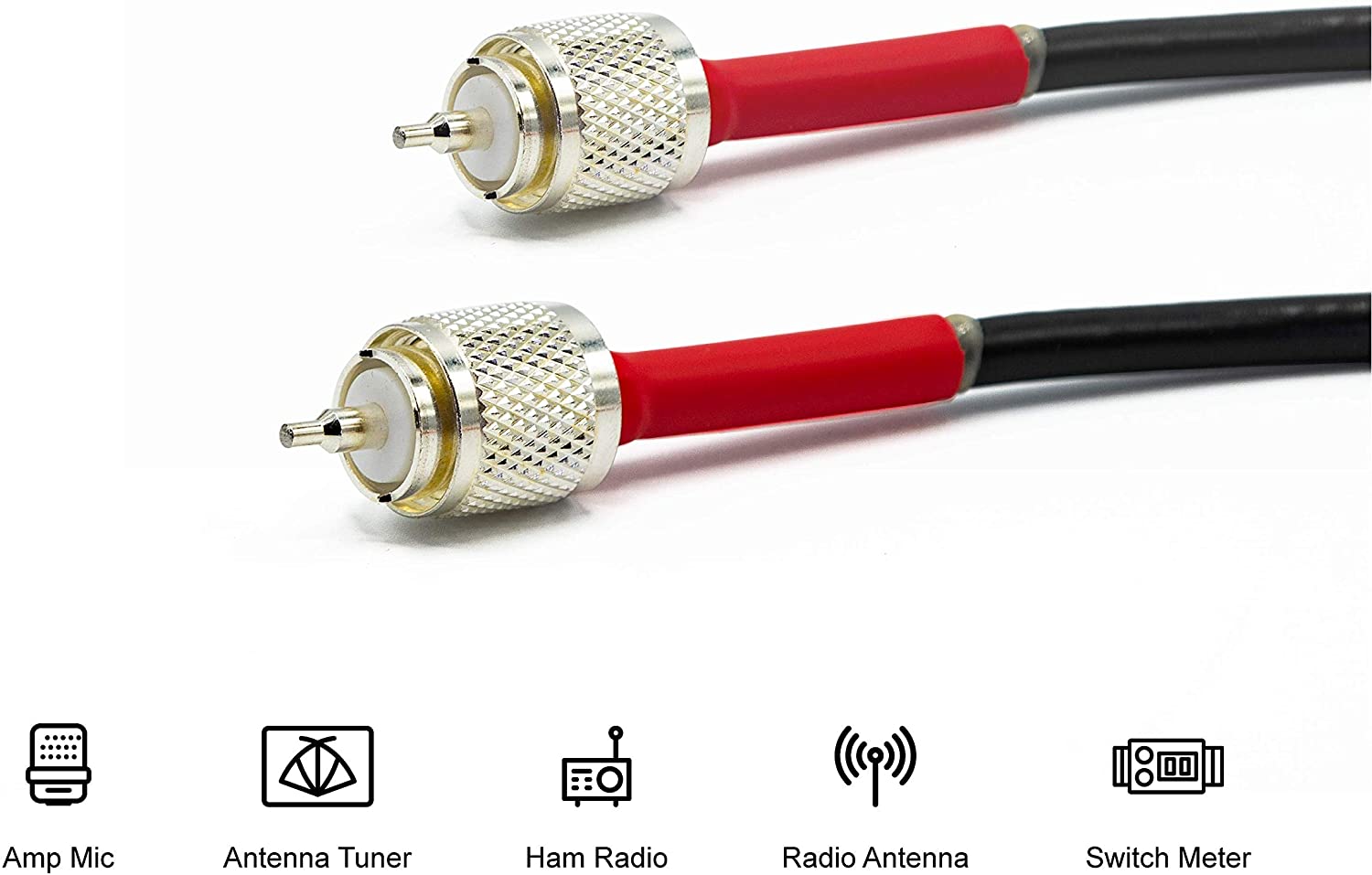

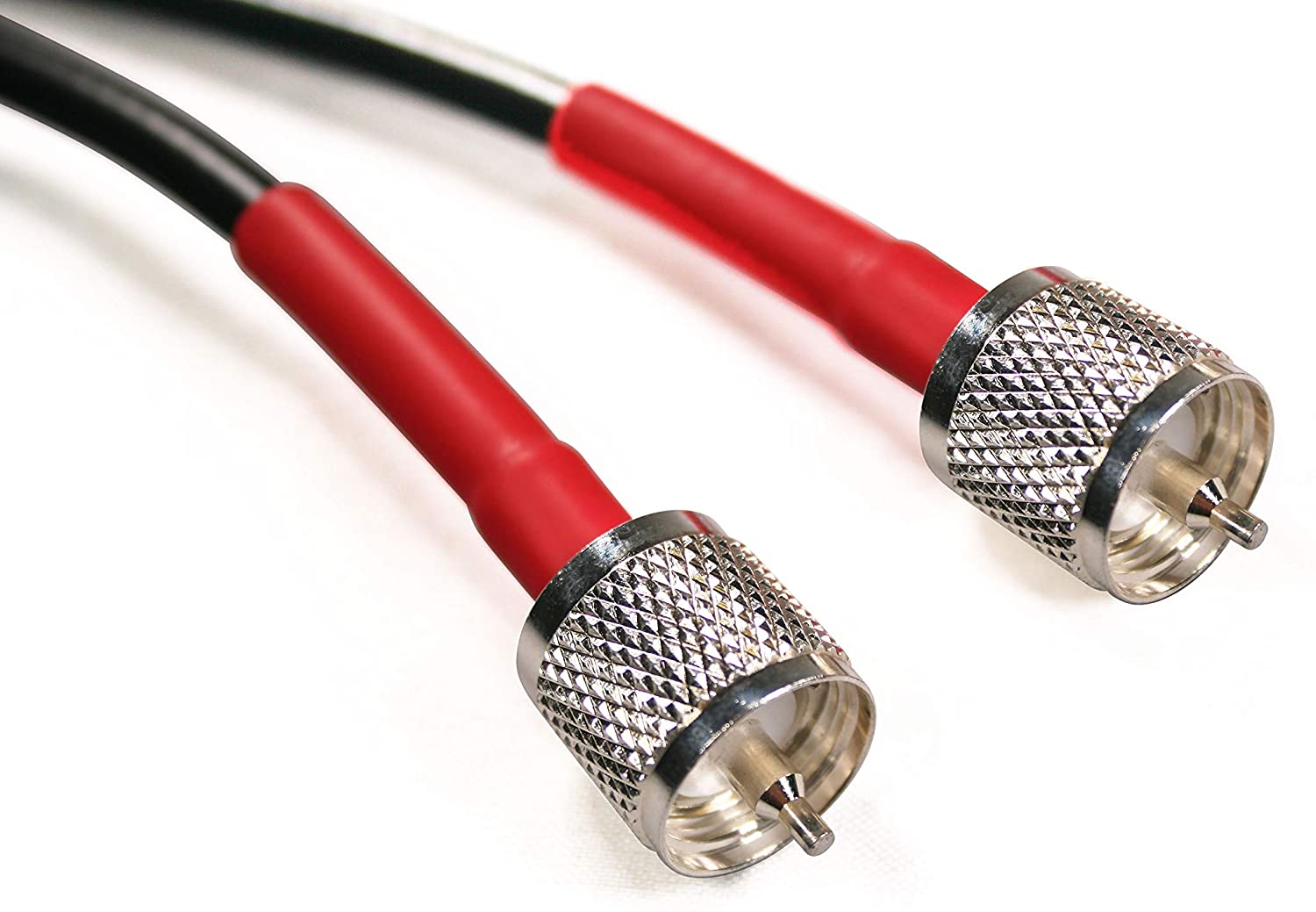

1. RG8X coaxial cable is assembled with a flexible outer black shielded PVC jacket insulator (0.242’’) with PL-259 male connectors on each end
2. The woven copper braided shielding provides 95% core coverage to prevent a significant amount of signal leakage or outside electrical interference
3. The dielectric foam polyethylene insulation is designed to help reduce the loss of signal and consistent secure signal performance
4. The Inside core is made of 16 AWG stranded bare copper conductor that carries high frequency signals from one end to another end

Measurements/Specifications:
Conductor – 0.058’’
Stranding: 19/29 (0.0113’’)
Dielectric diameter: 0.155”
Overall diameter: 0.242’’

Performance Specifications:
*1 MHz =.3 dB/100'
*10 MHz = .9 dB/100' w/ max power of 1 kW
*50 MHz = 2.1 dB/100' w/ max power of .37 kW
*100 MHz = 3.1 dB/100' w/ max power of .25 kW
*200 MHz = 4.5 dB/100' w/ max power of .19 kW
*400 MHz = 6.6 dB/100' w/ max power of .11 kW
*700 MHz = 9.1 dB/100' w/ max power of .08 kW
*900 MHz = 10.7 dB/100' w/ max power of .07 kW
*1000 MHz = 11.2 dB/100' w. max power of .06 kW

Product Features:
Velocity factor: 74%
50 ohm
Low loss
HF/VHF/UHF

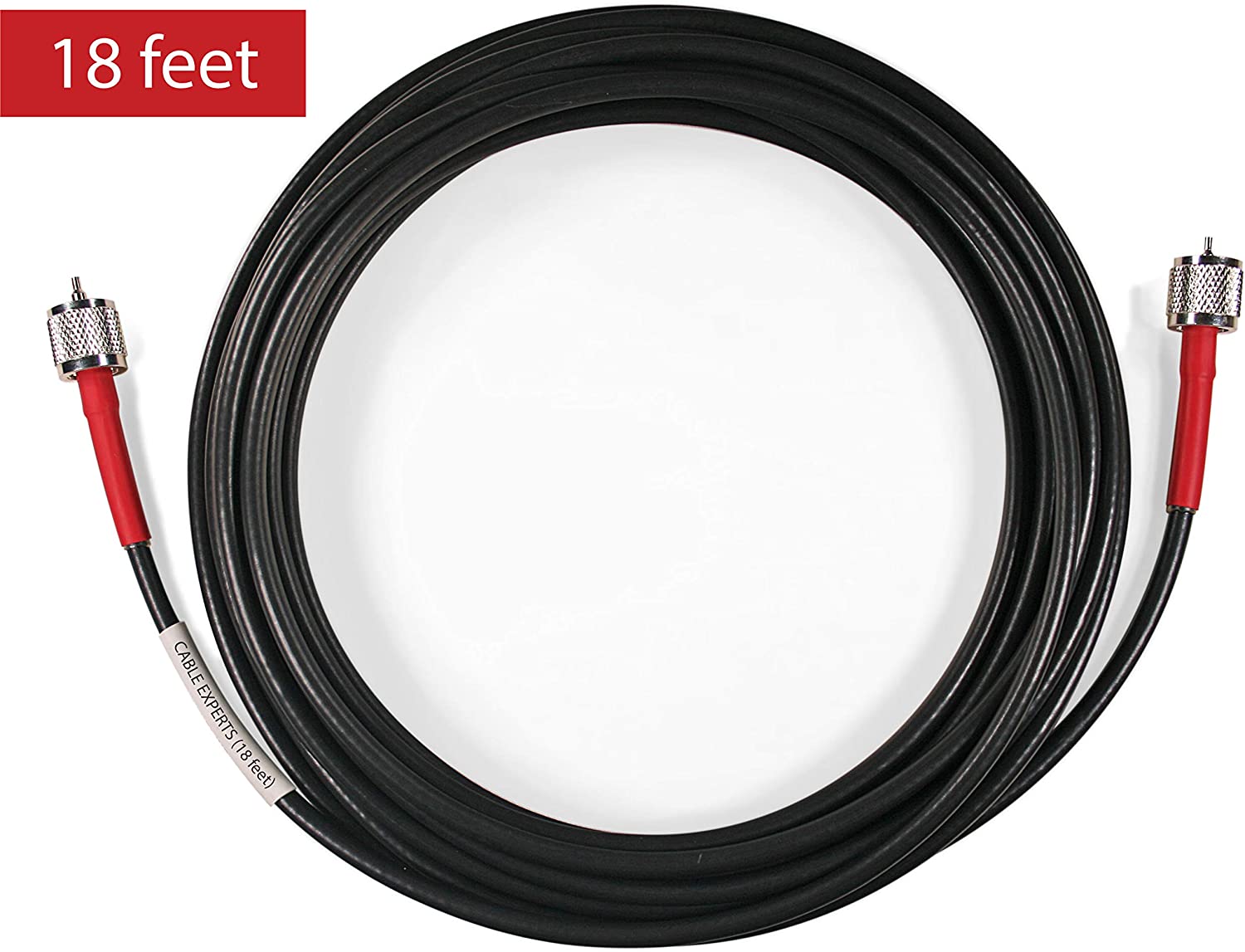

Offered in varies lengths
Maximum power handling of 875 watts
Single antenna Installation (dual antennas would require an RG-59-72ohm)

Purchase the RG8X cable now for the ultimate performance in your radio hobby or professional project, and make crystal clarity your new normal!
