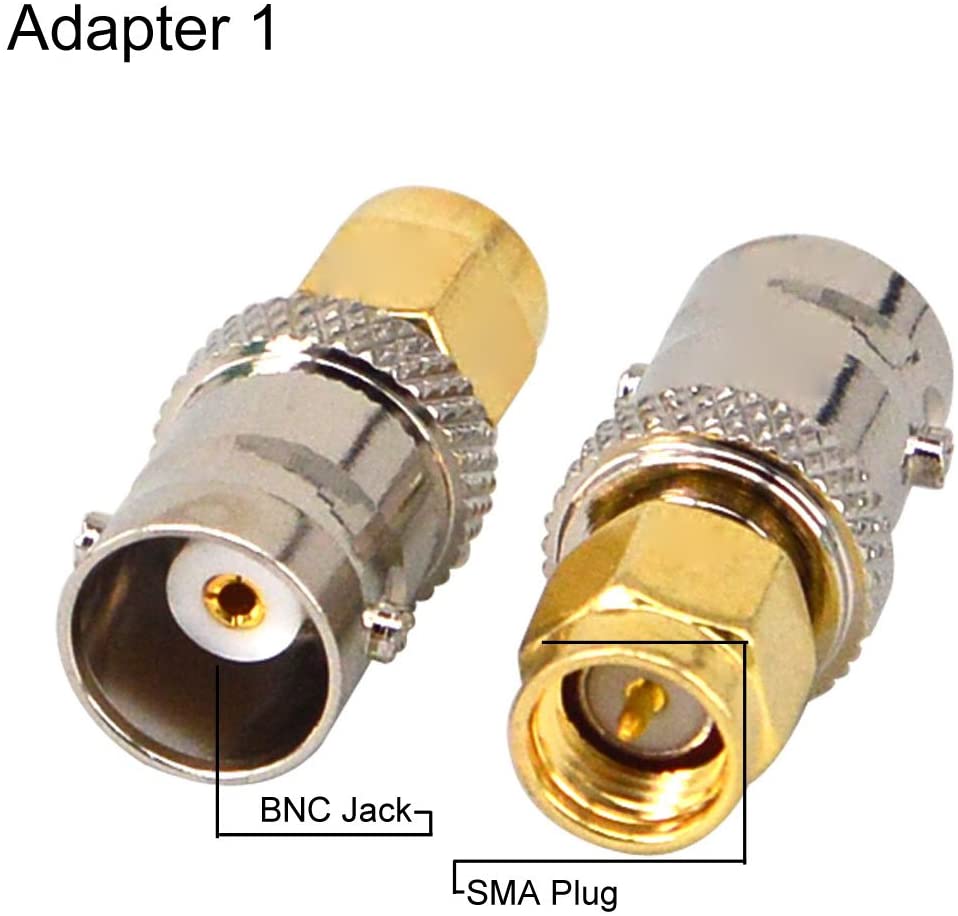

RF Coax Connectors, Work with Most ServicesBNC Female to SMA Male RF Coaxial Connector Adapter included,it can connects a BNC antenna to SMA radio | Great Coax Cables
| RF Antennas
|
Product description
This SMA series is small threaded coaxial connectors with high frequency bandwidth, excellent performance, high reliability and long life, has a wide range of application, eg: connection for two-way radio, audio, video, and other test equipment.
Product Specification:
Temp range:-65～+165℃ (PE Cable-40～+85℃)
Vibration:MIL-STD-202,Method 213
Impedance:50Ω
Frequency Range：DC～12.4GHz
Working Voltage：335V max
Insulation resistance≥ 5000 MΩ
Insertion loss≤0.15 dB/3GHz
TIPS:
Normal SMA male - A pin center,thread inside
Normal SMA female - A hole in center,thread outside
RP SMA male - A hole in center,thread inside
RP SMA female - A pin in center,thread outside
SMA Kits have 15 pieces connectors converters
SMA right angle kits include three types: SMA male to female 90 degree & SMA female to RP SMA male 90 degree & RP SMA female to RP SMA male 90 degree
Female to female kits include 4 types: SMA female to female barrel & RP SMA female to RP SMA female barrel & SMA female to RP SMA female barrel & SMA female to female bulkhead
Male to Male kits : SMA male to male & SMA male to RP SMA male & RP SMA male to RP SMA male
SMA 3 way kits : SMA male to dual SMA female & RP SMA male to Dual RP SMA Female
Male to Female kits : SMA male to female & RP SMA male to SMA female & RP SMA Female to SMA male
