Commodity details

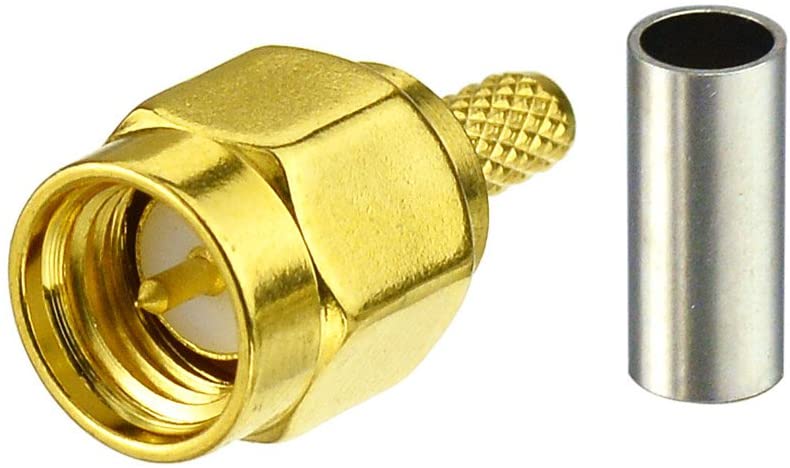

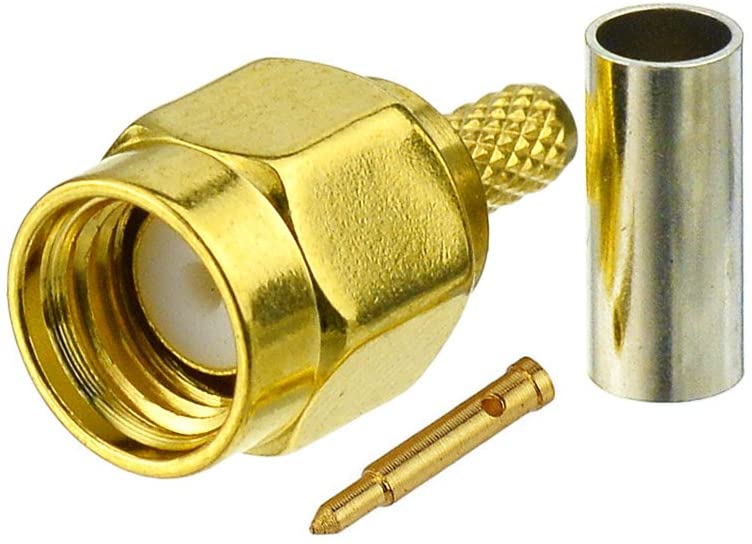

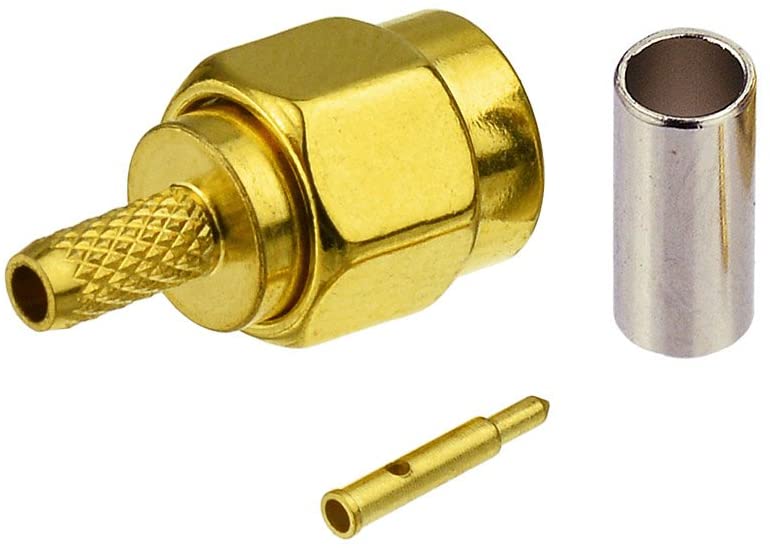

- Product name：10pcs SMA Male Crimp RF Connector Gold-Plating for RG316 RG174 Cable
- product number：EB000104
- Shop：BEEelec Official Store
- weight：27gram
- Shelf time:2020-06-11 15:01:19
- SMA male connectors (inside threads with male inner pin); Termination: cable-crimp; Impedance: 50ohms
- Well built: Connectors made from gold-plated brass for mechanical durability and secure signal connection
- Compatible with coax cable RG-174, RG-316, RG-188, RG-188A, LMR-100
- Great to build cable assemblies for 50ohm RF applications including 4G LTE antennas, routers, WiFi antenna systems, VHF/UHF ham radio antennas,etc

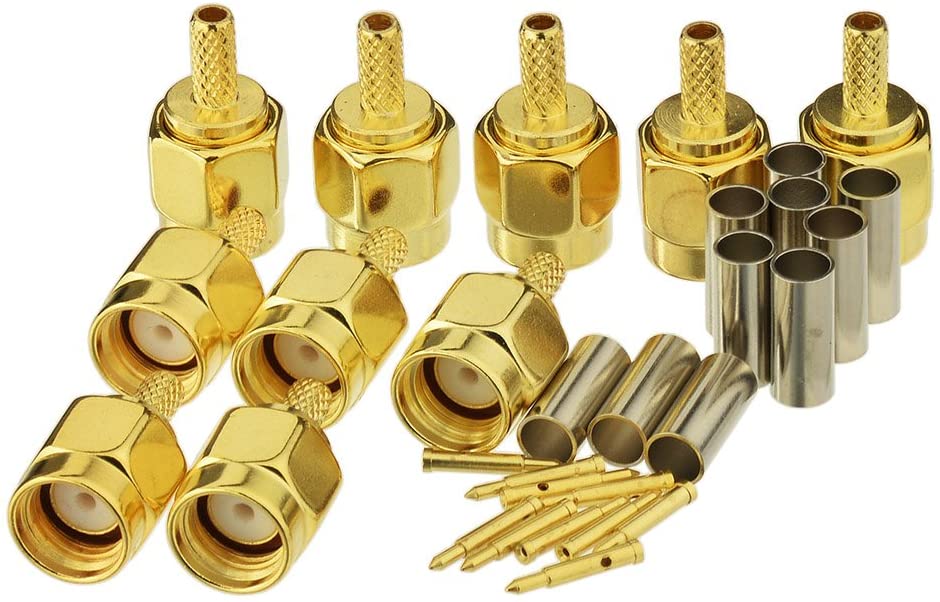

- Package includes:10pcs SMA male crimp RG316 connectors
Specification
Gender:Plug
Orientation:Straight
Termination Style:Cable - Crimp
Impedance:50 ohms
Body Material:Brass, Body plated:Gold
Contact Material:Brass, Contact plated:Gold
Contact Termination Style:Solder
Insulator Material:PTFE
Coupling Mechanism:Threaded
Polarity:Standard
Thread Direction:Standard
Application
Base stations
Antennas
Telecommunications
Instrumentation
PC/LAN
