Commodity details

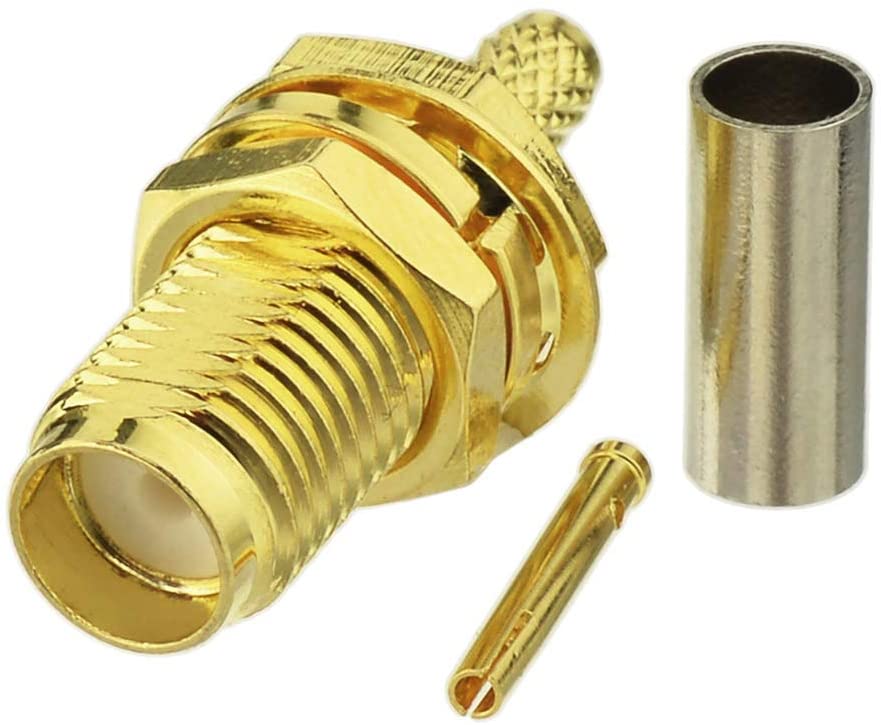

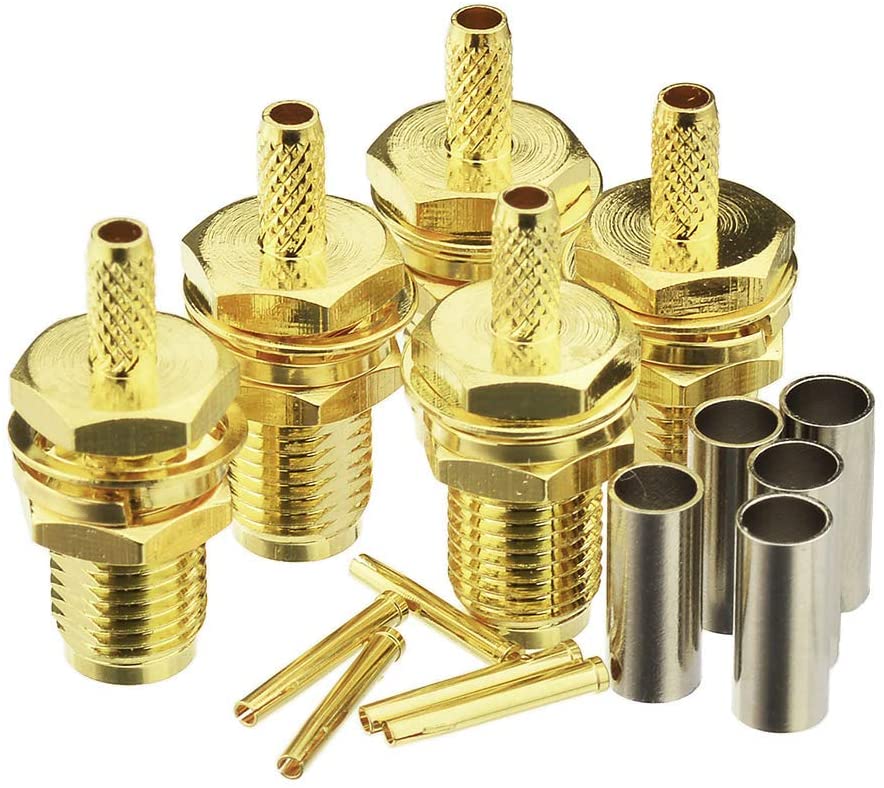

- Product name：10pcs SMA Female Bulkhead Crimp Connector Gold-Plated for RG316 RG174 Cable
- product number：EB000105
- Shop：BEEelec Official Store
- weight：30gram
- Shelf time:2020-06-11 15:03:58
- Product Type: SMA bulkhead female connector; Termination: cable-crimp; Impedance: 50 ohms
- Connectors made from gold-plated brass for mechanical durability and secure signal connection
- Works with Coax Cable: RG316,RG174,RG188,LMR100
- Great to build cable assemblies for 50ohm RF applications including 4G LTE antennas, routers, WiFi antenna systems, VHF/UHF ham radio antennas,etc

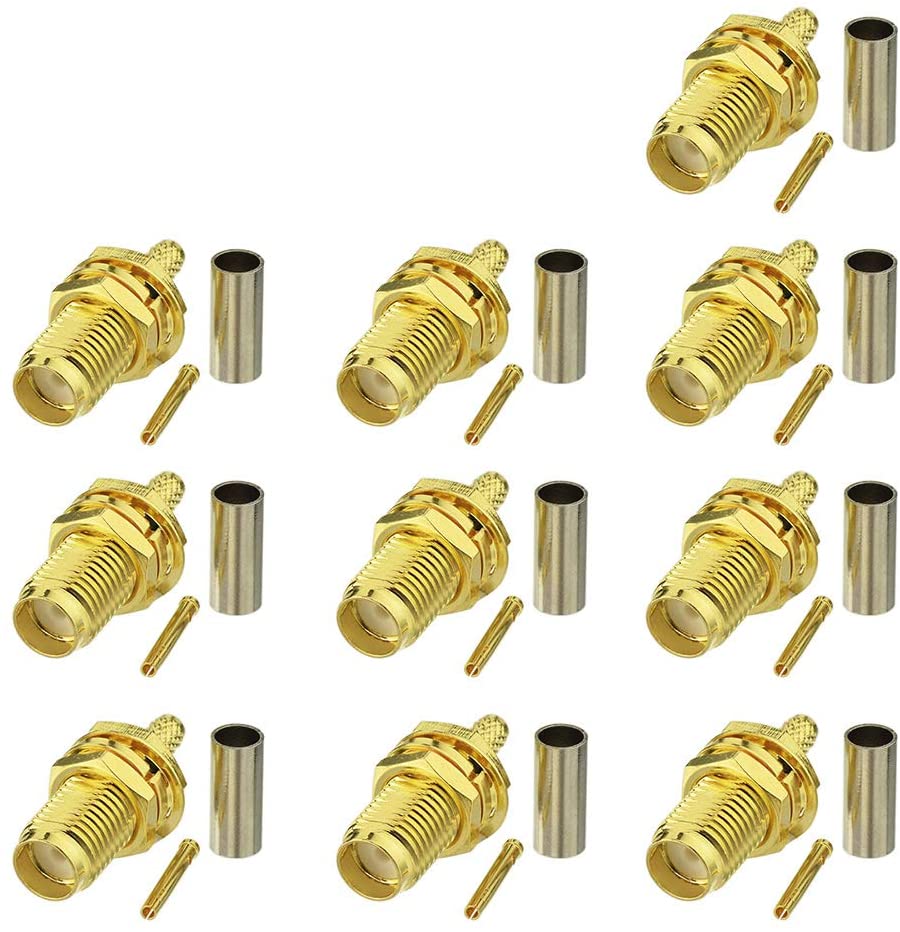

- Package includes: 10pcs SMA Female RG316 connectors
Gender: female (outside threads with female inner hole pin)
Impedance: 50 ohms
Body Material:Brass, Body plated:Gold
Contact Material:Brass, Contact plated:Gold
Contact Termination Style:Solder
Insulator Material:PTFE
Mount Method:Bulkhead
Coupling Mechanism:Threaded
Polarity:Standard
Thread Direction:Standard
Frequency Range:3GHz
Applications
Base stations
Antennas
Telecommunications
Instrumentation
PC/LAN
