Product name：2 x 8dBi WiFi RP-SMA Male Antenna 2.4GHz 5.8GHz Dual Band +2 x 15CM U.FL/IPEX to RP-SMA Female Pigtail Cable for Mini PC

product number：EB000137

Shop：BEEelec Official Store

weight：59gram

Shelf time:2020-06-13 23:11:27

OMNI-DIRECTIONAL WIFI ANTENNA- This 8dBi omni-directional is with 2.4GHz and 5.8GHz dual band, high gain and can extend wireless range to dead spot

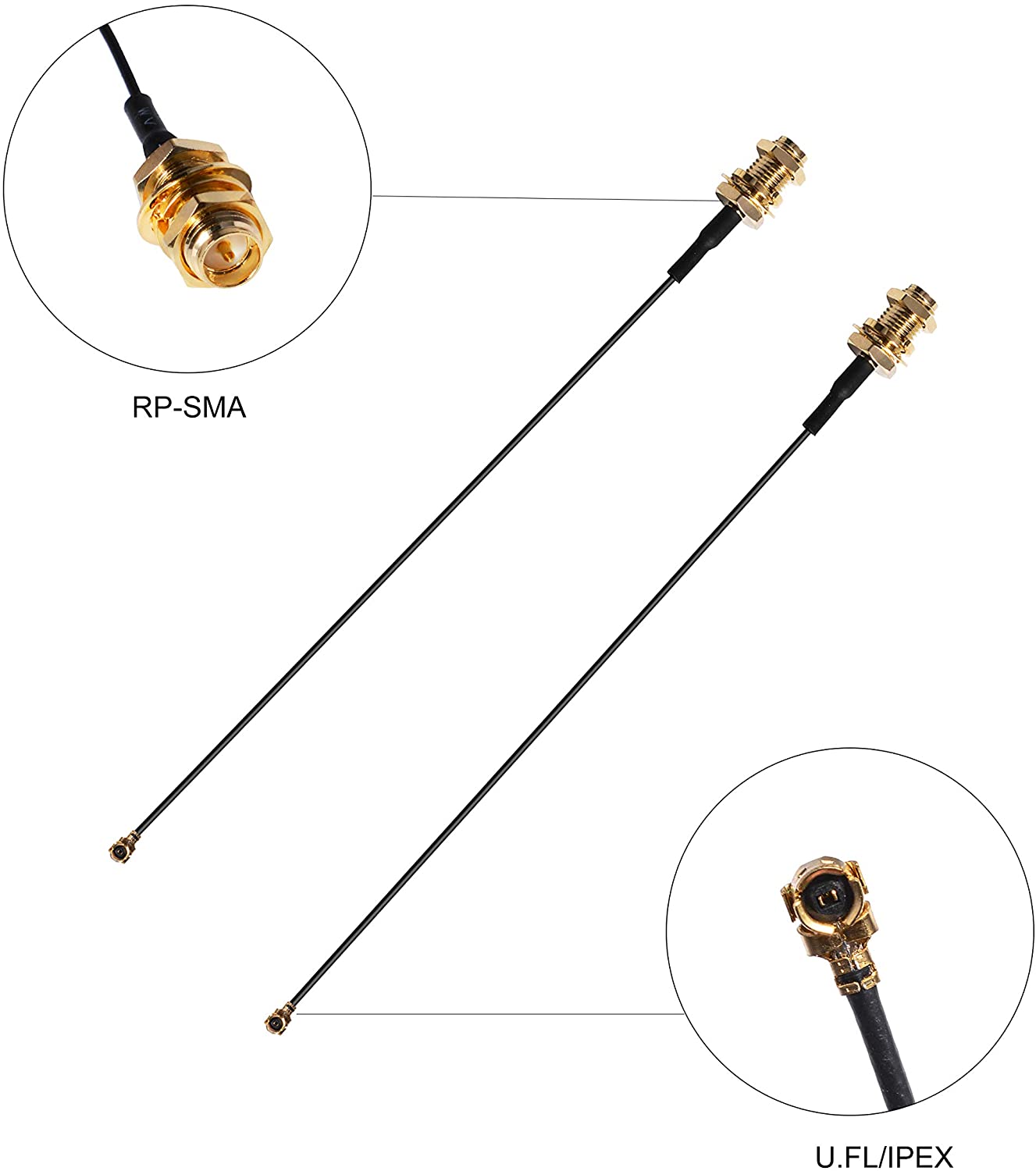

PIGTAIL SPECIFICATIONS- Connector type: IPEX MHF4 to RP-SMA Female,Length: 15cm/5.9”
STABLE SIGNAL TRANSFER- The WIFI antenna is used high quality circuit board which ensures maximum and stable signal quality. Easy to install and increase signal strength

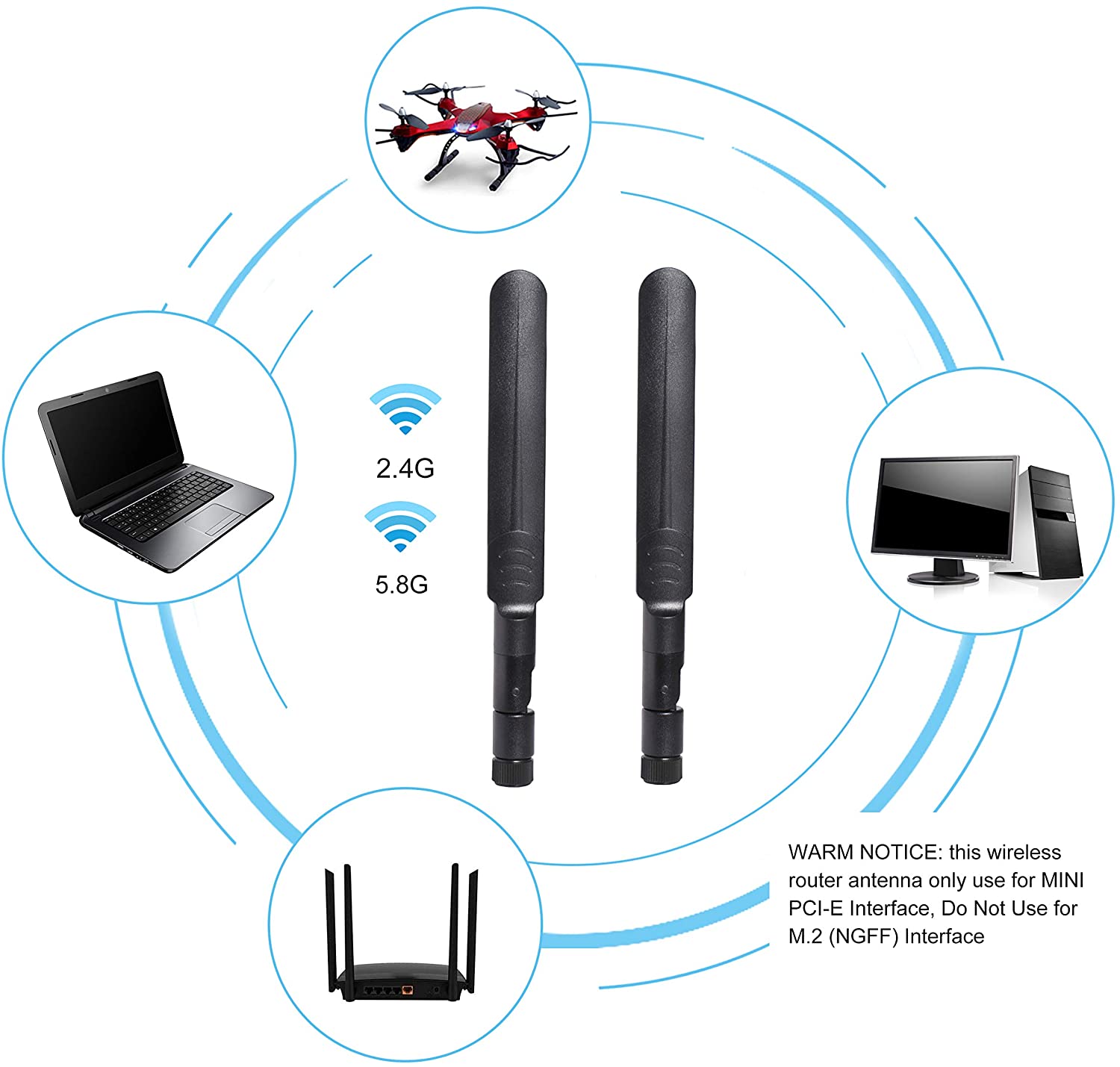

WORK WITH- This wireless antenna works with most wireless devices, such as Mini PCIe Wireless Card Routers / Repeater / Range Extender / Desktop PC / Mini ITX Build / PCI Card / FPV UAV Drone / PS4 Build. WARM NOTICE: this wireless router antenna only use for MINI PCI-E Interface, Do Not Use for M.2 (NGFF) Interface, please check your connectors before purchasing

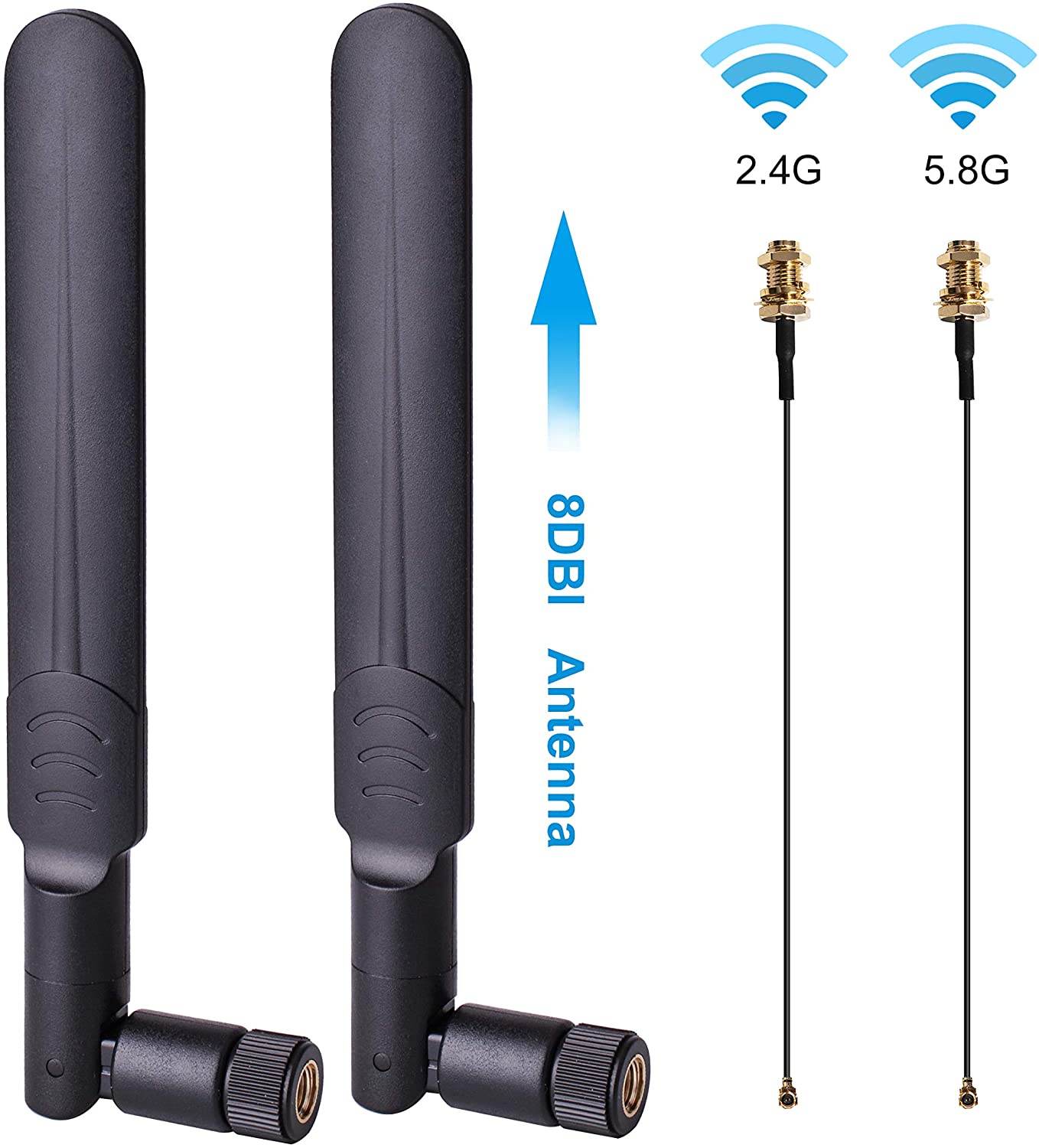

PACKAGE INCLUDES- 2X 8dBi WIFI antenna+ 2X 15CM U.FL/ IPEX to RP-SMA Female Pigtail Cable

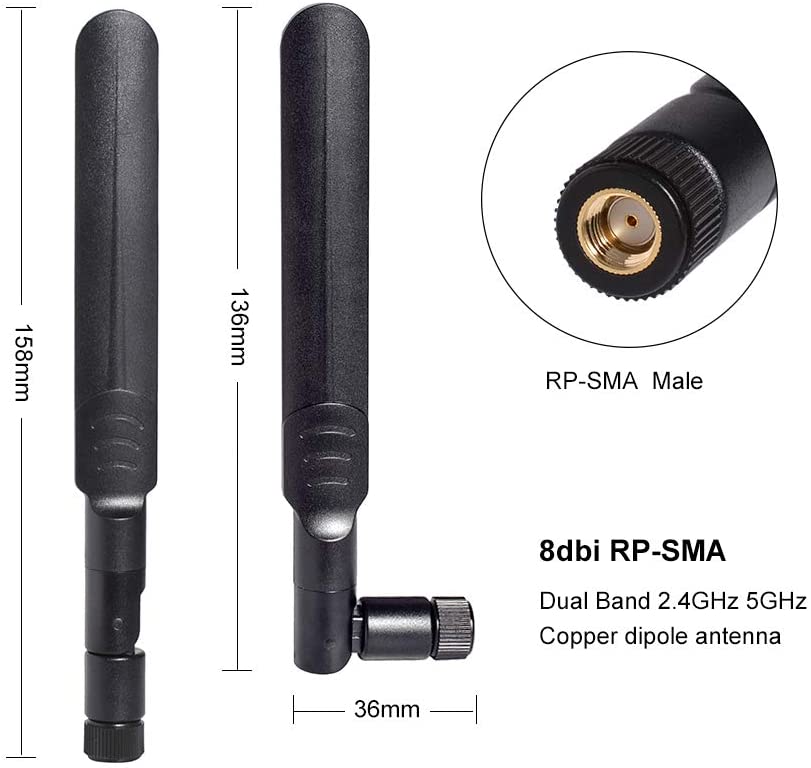

Antenna Specifications:

Radiation: Omni-directional

Gain: 6dBi or 8dBi

Frequency Range(MHz): 2300-2500, 5725-5850MHz

Angle Adjustable: 90°

6dbi Dimension: 19.2cm(Unbend) / 17cm(Bend)

8dbi Dimension: 15.6cm(Unbend) / 13.3cm(Bend)

Application Condition Indoor Operating Temperature： -40~+85

Package include: 2 X 6dBi or 8dBi Dual Band WiFi RP-SMA Male Antenna + 2X 20cm U.FL/IPEX to RP-SMA Female Pigtail Cable

Usage

2.4GHz 5GHz Dual Band WiFi RP-SMA Antenna Used For Mini PCIe Card Wireless Routers, FPV Drone ,PC Desktop, Signal Booster，Repeater, Radio and PS4 Build etc.


6dBi RP-SMA Male Antenna	8dBi RP-SMA Male Antenna	20CM U.FL/IPEX(MHF1) to RP-SMA Female Pigtail Cable	How to use the antenna?

How to choose the pigital cable?


	6dbi antenna with IPEX (MHF1) cable	8dbi antenna with IPEX (MHF1) cable	6dbi antenna with IPEX (MHF4) cable	8dbi antenna with IPEX (MHF4) cable
Gain of Antenna	6dbi	8dbi	6dbi	8dbi
Connector Type of Antenna	RP-SMA Male	RP-SMA Male	RP-SMA Male	RP-SMA Male
Connector 1 Type of Pigtail Cable	RP-SMA Female	RP-SMA Female	RP-SMA Female	RP-SMA Female
Connector 2 Type of Pigtail Cable	IPEX (MHF1)	IPEX (MHF1)	IPEX (MHF4)	IPEX (MHF4)
Length of Pigtail Cable	20CM	20CM	20CM	20CM
Fit for Which Cards	Mini PCI-e Cards	Mini PCI-e Cards	M.2(NGFF) Cards	M.2(NGFF) Cards
The Diameter of Circle On Wireless Cards	2MM	2MM	1.5MM	1.5MM
Wireless Cards Model	intel 7260 3160 etc.	intel 7260 3160 etc.	intel 7265 8260 8265NGW 9260 9265 9560 etc.	intel 7265 8260 8265NGW 9260 9265 9560 etc.
