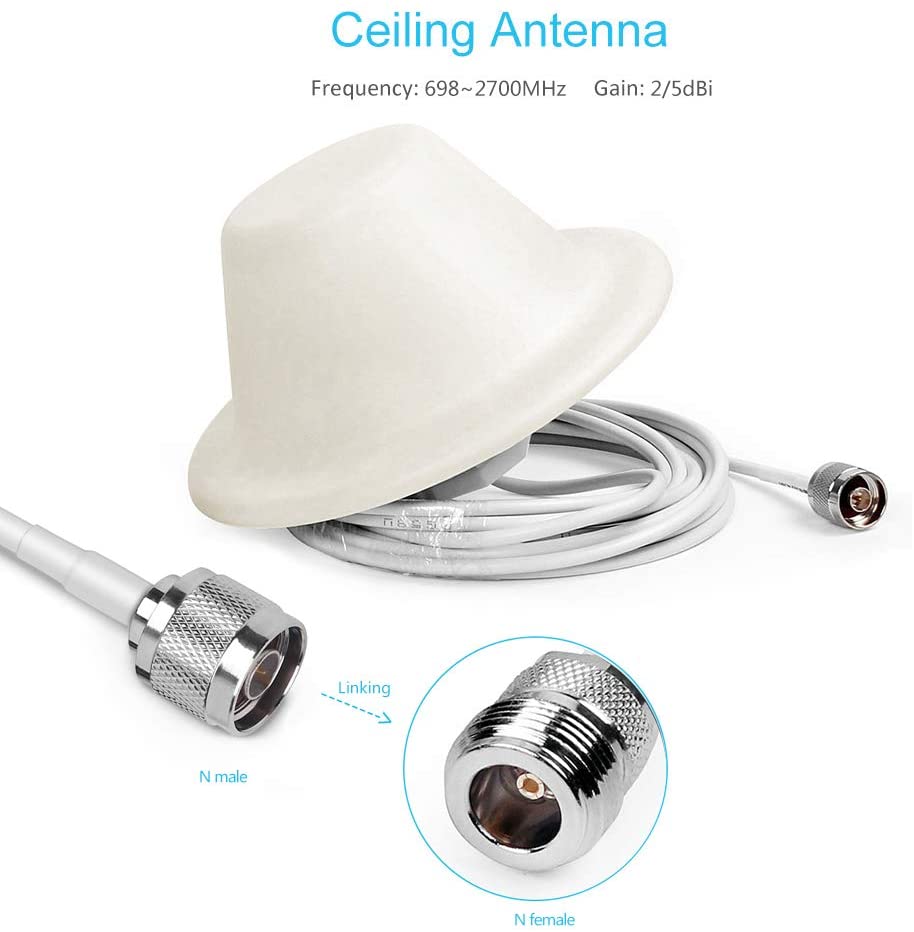

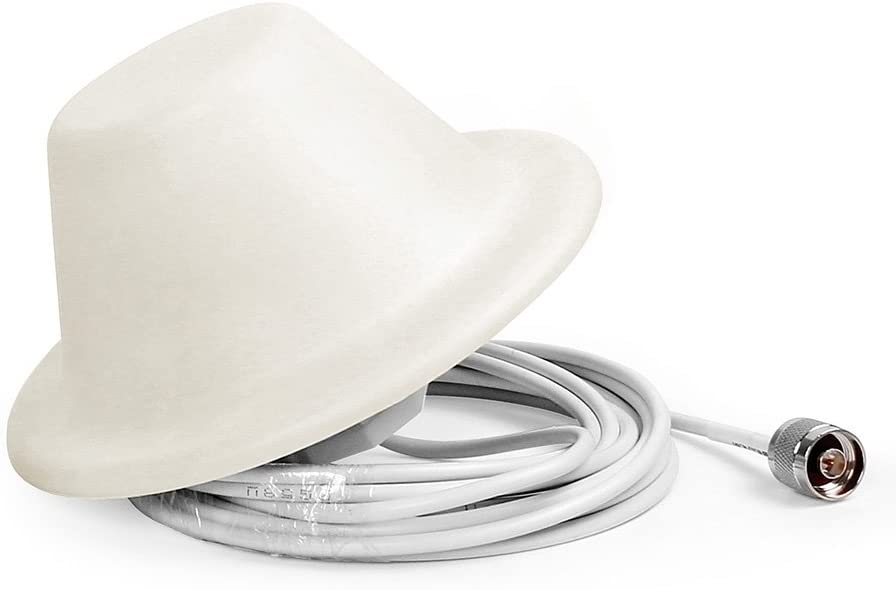

Indoor Ceiling Antenna
Features:
Broad Band, Cover 698-2700MHz Common System
Light Weight, Small Size
Applications:
700MHz LTE Networks
CDMA/Cellular/3G WCDMA/WLAN
2300MHz/2600MHz LTE Networks
698-960/1710-2700MHz Band
Indoor Coverage System
Specifications:
Freq.Range(MHz): 698-960/1710-2700
Typical Gain(dBi): 2/5
Typical Beam Width(°): 360
VSWR: <1.5
Impedance(?): 50
Polarization: Vertical
Max. Power(W): 150
Cable Type: RG58

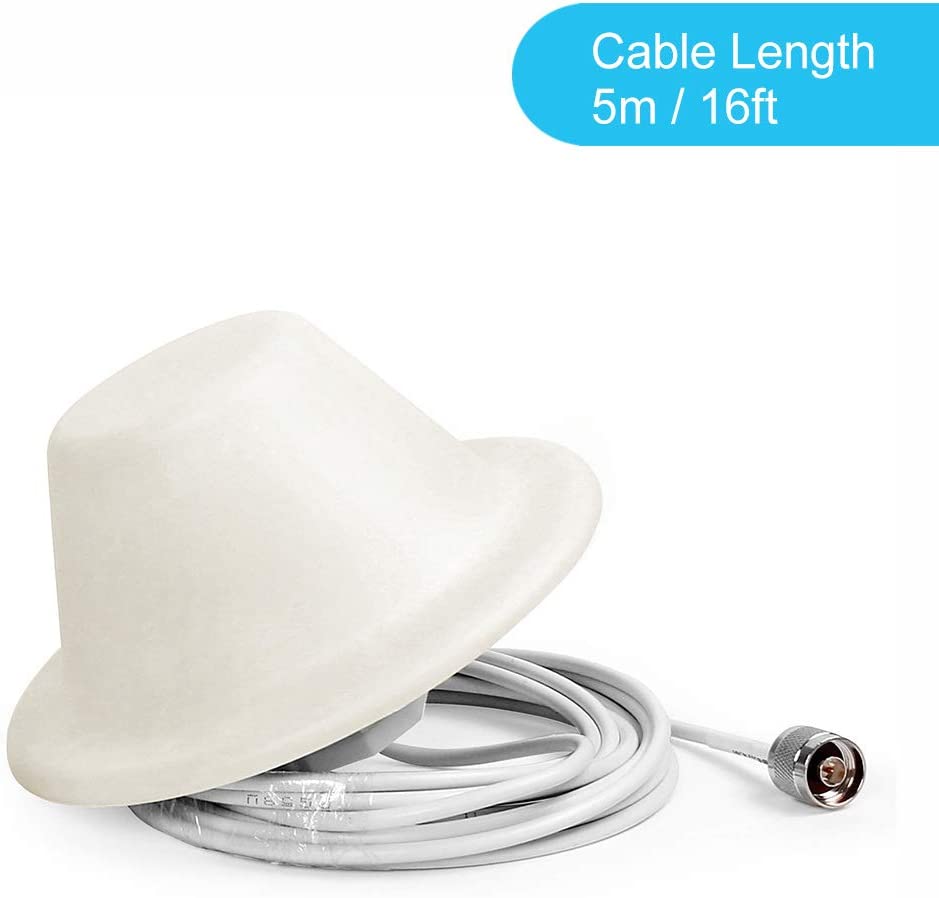

Cable Length: 5m
Cable Color: White
Connector: N male

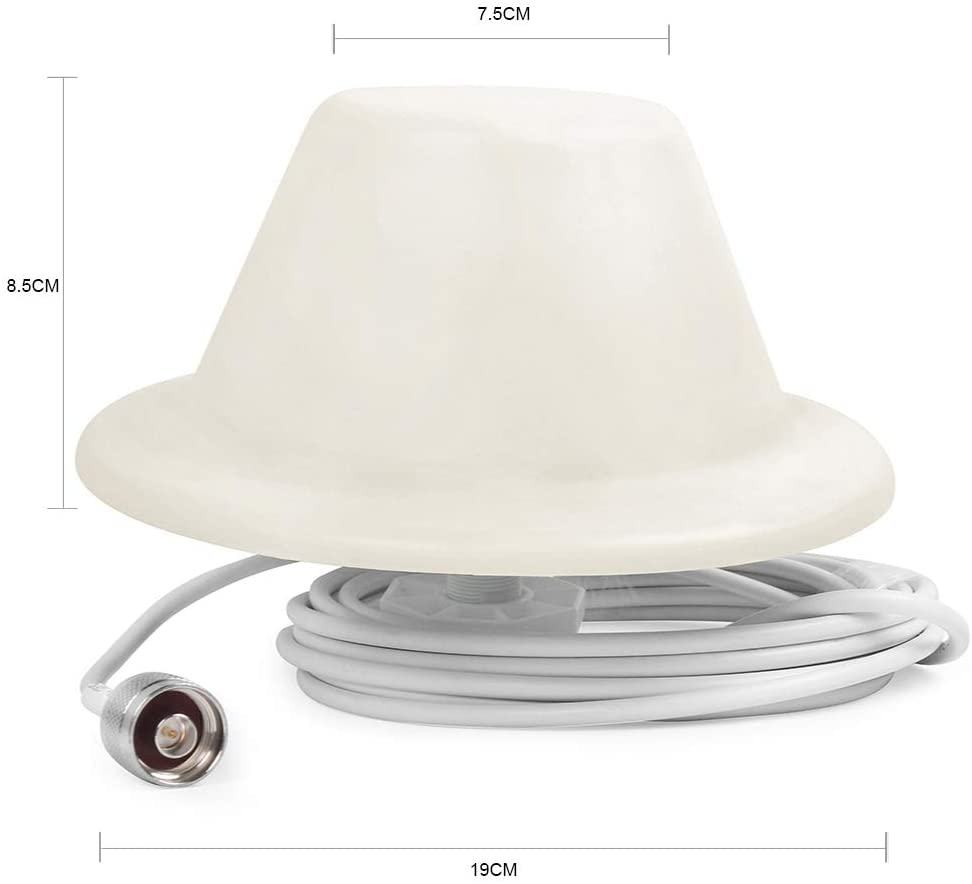

Dimensions(mm): 200*178*40
Weight(Kg): 0.3
Color: White
Mounting: Ceiling Mounting
Attention:
This is an indoor directional antenna only. It doesn't work alone. You need a Cell Phone Signal Booster/Repeater to work with this antenna.
