Product name：TP514 Yagi Directional Antenna 3G/4G/LTE 9dBi 806MHz-960MHz and 1.7-2.5GHz 2FT Cable w/ 2FT RP-SMA Male Cable to TS-9 Ad

product number：EB000168

Shop：BEEelec Official Store

weight：57gram

Shelf time:2020-06-14 11:38:11

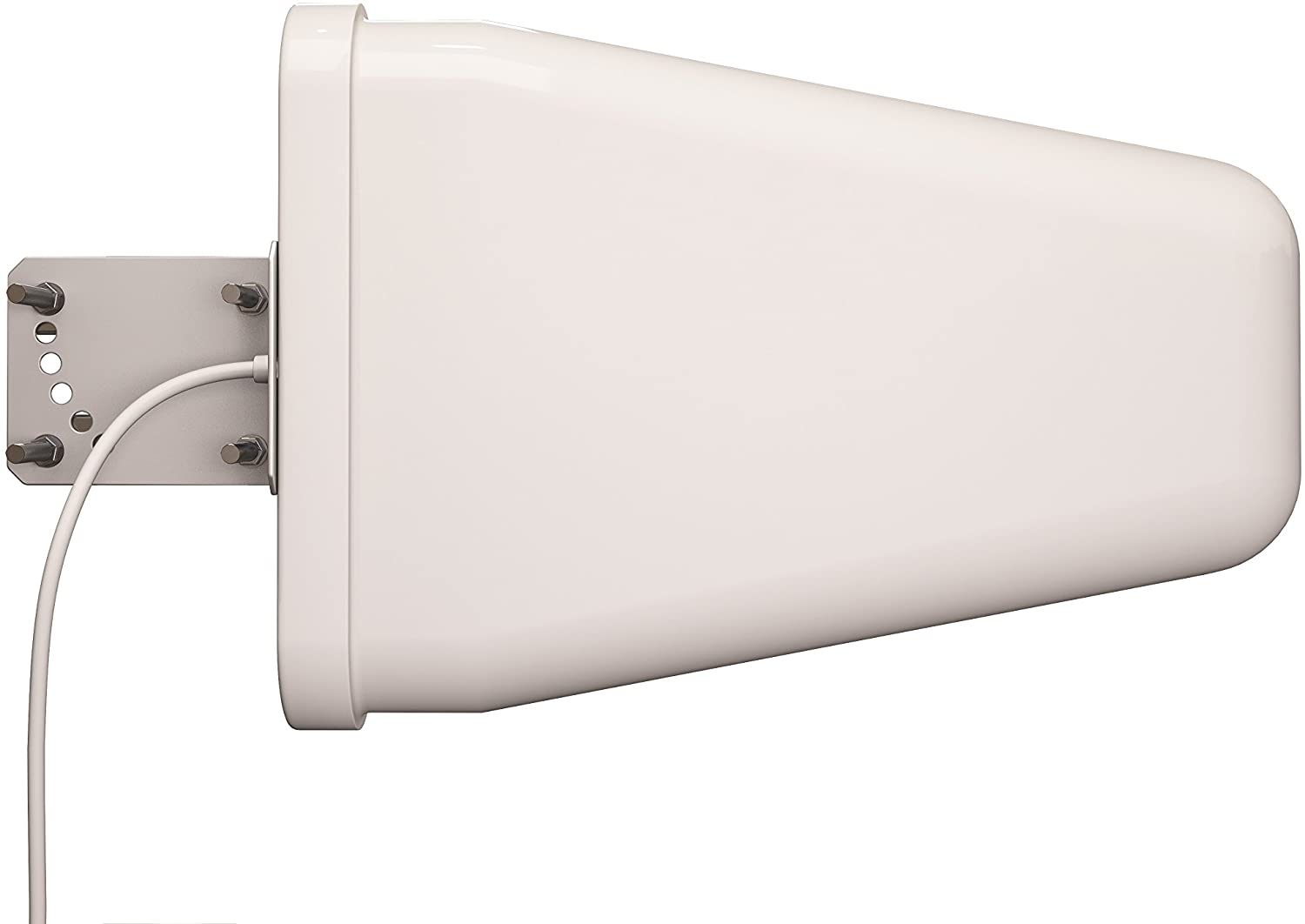

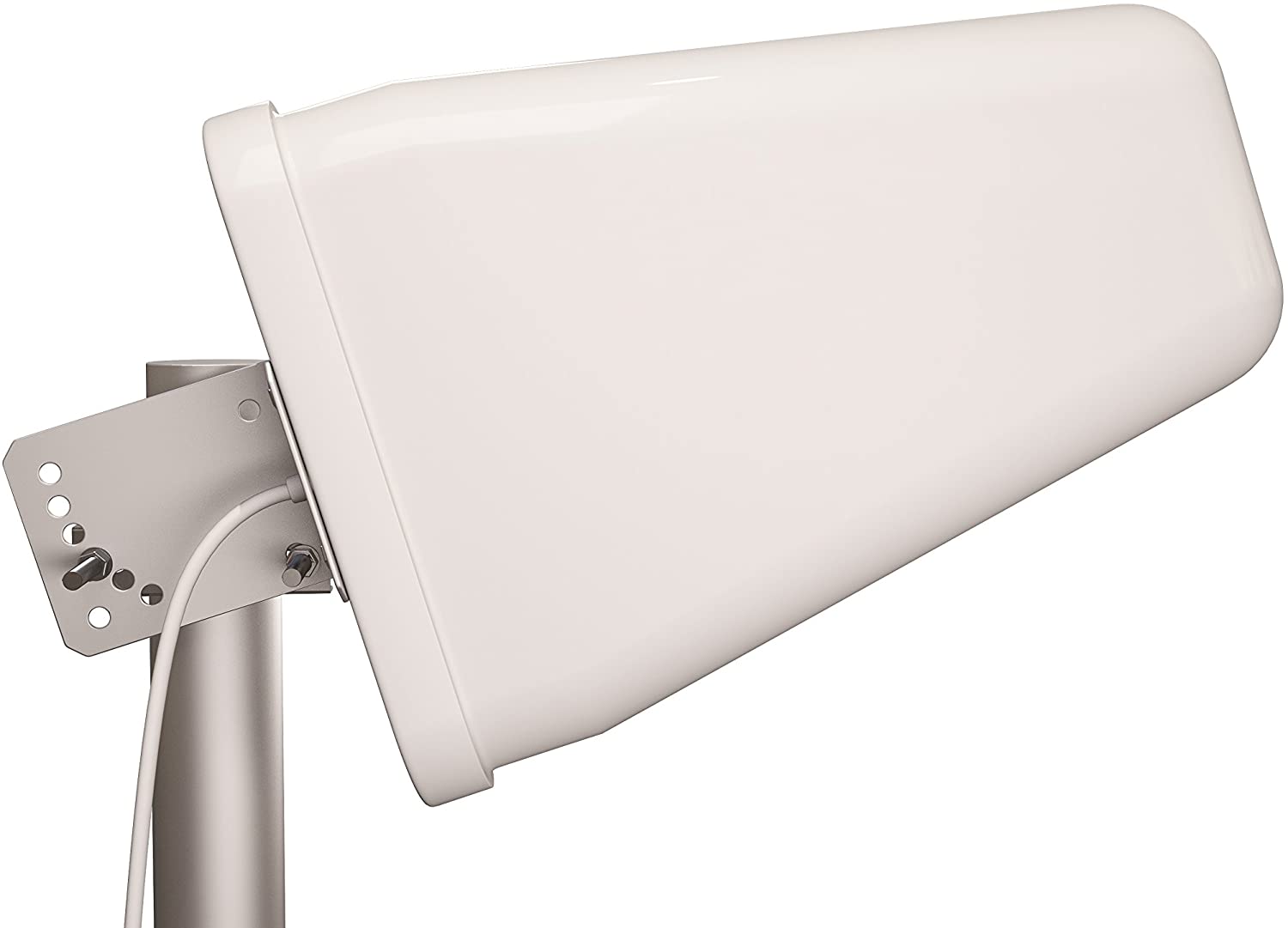

4G/LTE 9dBi Directional Roof Antenna 806MHz-960MHz and 1.7GHz-2.5GHz Range

The main benefit of this wideband Yagi antenna is its ability to focus its signal in one direction leading to the greater gain figures. This antenna is designed for use on stationary objects such as buildings or houses. This unique multi-band directional antenna covers the wide multi-range spectrum and can be used for cellular frequencies including North American standard 850 and 1900 MHz bands.

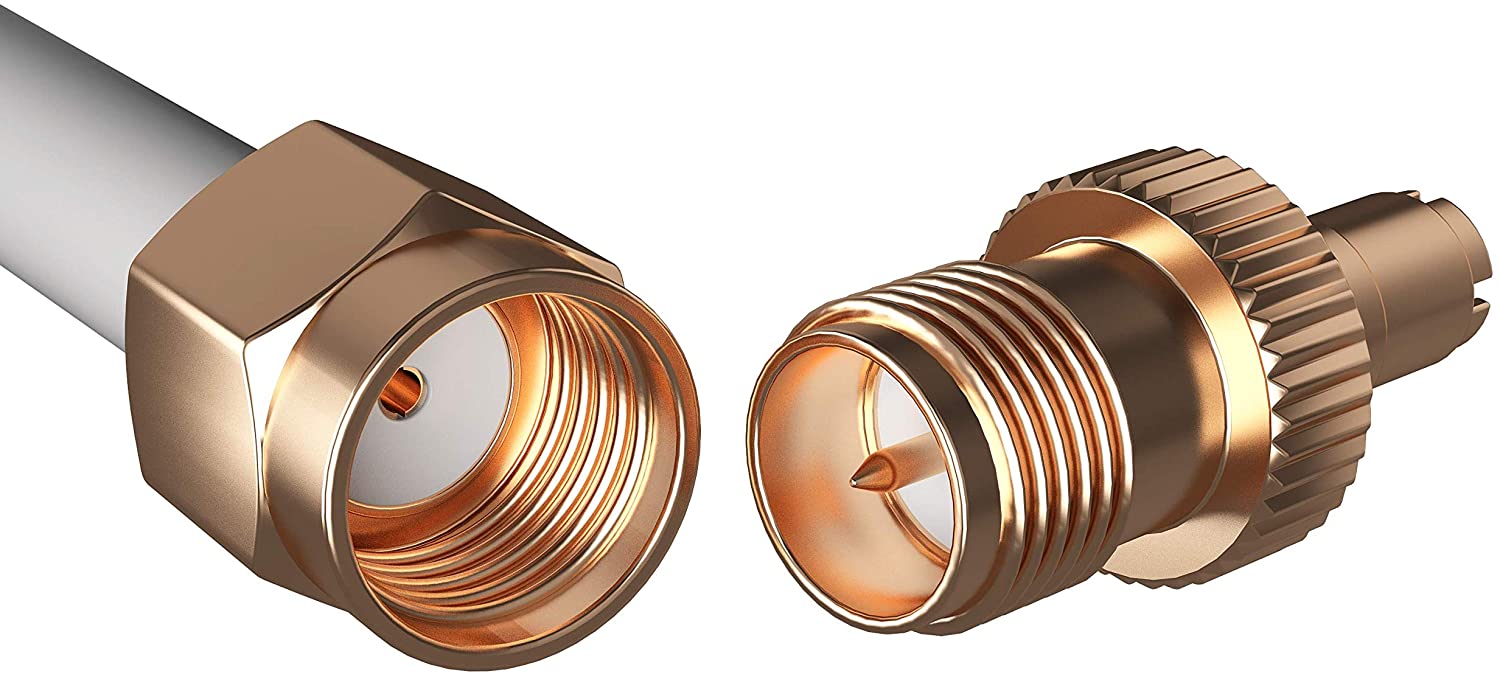

Yagi Cell Antenna TP514 is a roof antenna and in most cases cannot be attached directly to the device (wifi router, signal booster, etc.) without some type of cable converter/adapter. This is the directional antenna and you will need to know the direction of your source signal. This Antenna has SMA-Female with additional TS-9 adapter/connector to fit and connector type on your device. Also, you can put amp of some kind or signal booster between device and antenna. Please check your cellular provider frequency to be sure that antenna range will cover that frequency.

Cell Phone Signal Booster Log Periodic Cellural Antenna

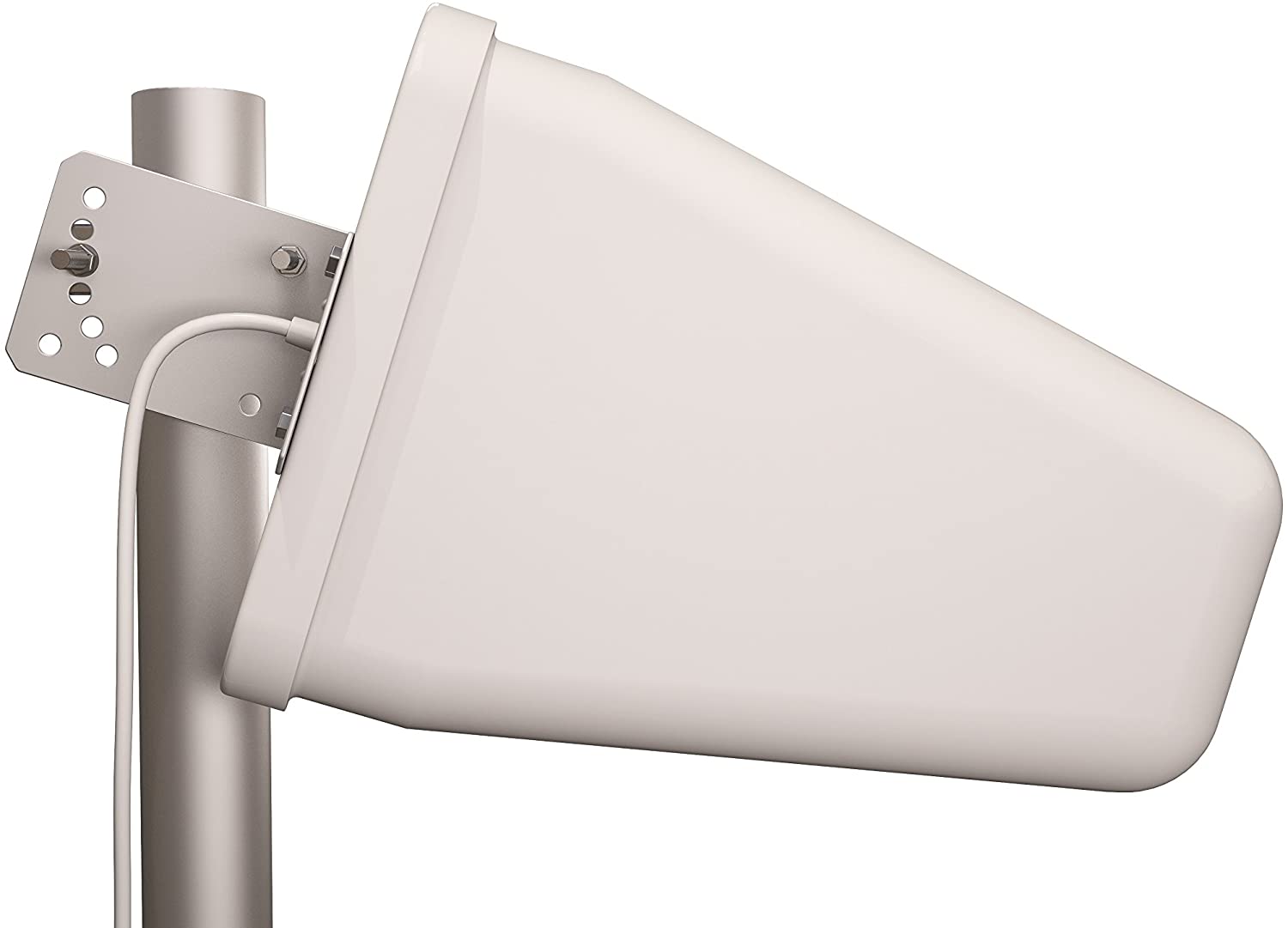

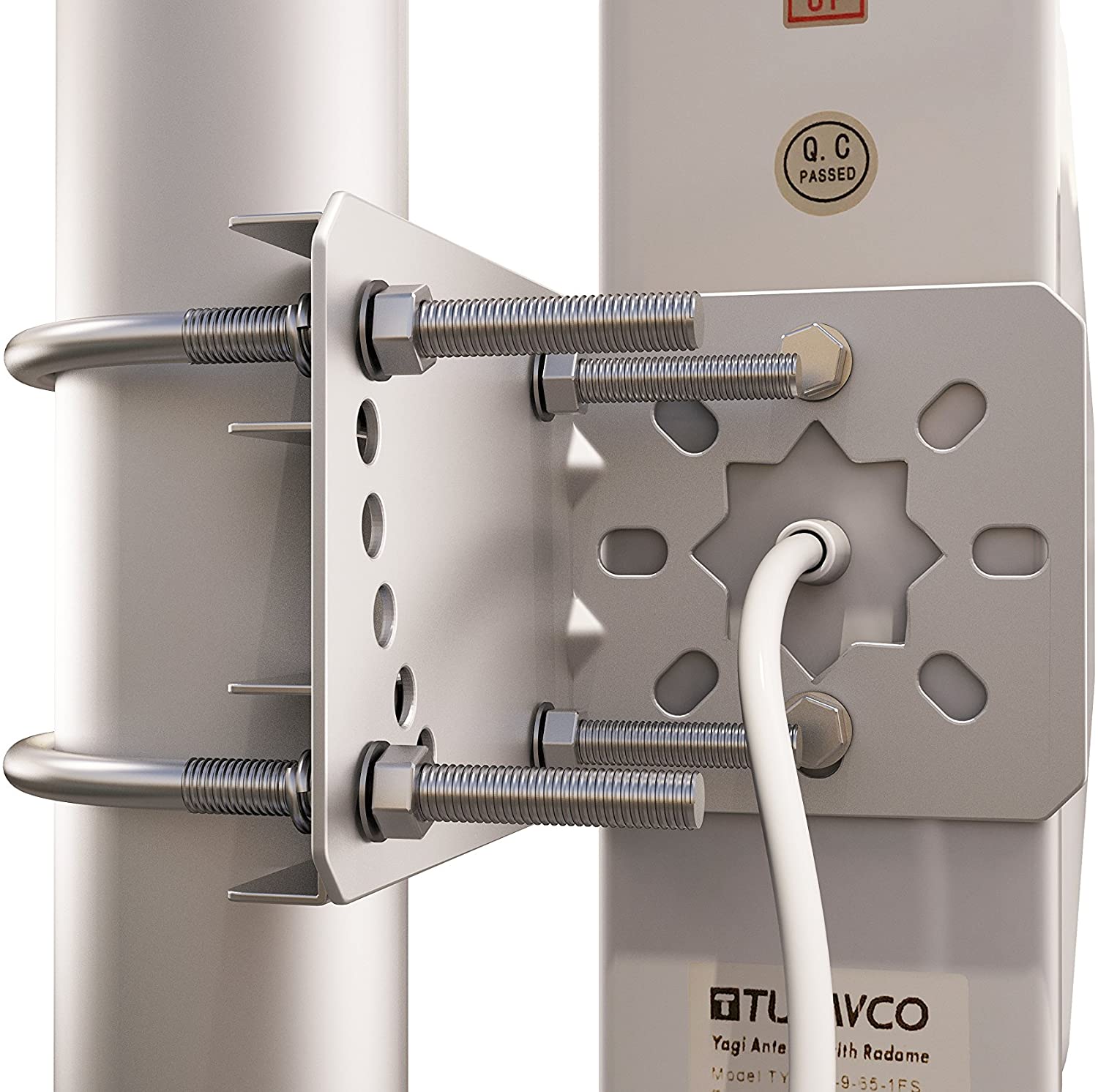

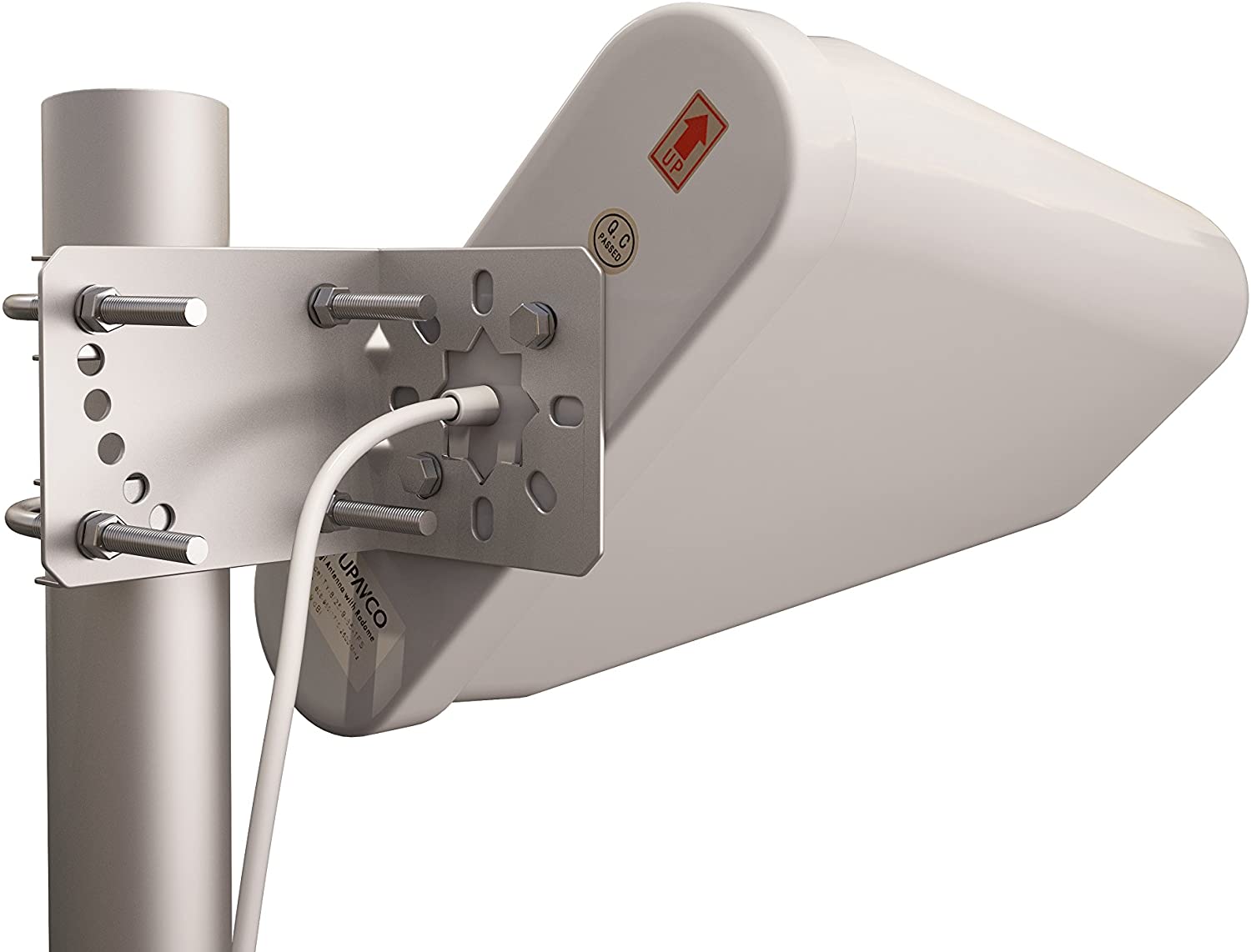

The antenna does not come with mast pole mount; it comes with two U-bolts which can be used with the attached plate for pole mounting. It allows horizontal or vertical polarization.

The Yagi antenna is used to direct the WiFi beam. It will increase the signal/reception in the direction it is pointing.

This yagi cellular antenna is ideally suited for directional and multipoint 806-960Mhz nad 1710-2500MHz band range applications.

Yagi Antenna is the most popular type of directional signal booster antenna in use today. The 9dBi Outdoor Yagi Antenna offers 65 deg Vertical and 55 degrees Horizontal Beamwidth.

The Yagi antenna operates without the need for a grounding in most cases. However, you can ground antenna via the outer conductor of the connector and the cable, or through the mounting hardware. We do, however, recommend you install a lightning surge protector between the cell antenna and a device to prevent a lightning strike to the antenna from damaging your device and equipment.

Specifications


Electrical Data - Gain: 9 dBi. - Frequency: 806-960/1710-2500 MHz. - VSWR: <1.5:1. - Polarization: Horizontal or Vertical. - Horizontal Beamwidth: 65°. - Vertical Beamwidth: 55°. - Nominal Impedance: 50 Ohms. - F/B Ratio: >14 dB. - Max Input Power: 100 W.	Mechanical Data - Connector: SMA connector and TS-9 adapter. - Dimensions: 11.818.272.56 in. - Weight: 1.76 lb. - Cable Length: 2FT. - Reflector Material: Aluminum Alloy. - Radome Material: Weatherproof ABS. - Mounting Method: Mast (not included). - Mast Size: Ø40-Ø50mm. - Rated Wind Velocity: 210km/h. - Operating temperature: -40~+65C.	Installation The Yagi antenna operates without the need for a grounding in most cases. However, you can ground antenna via the outer conductor of the connector and the cable, or through the mounting hardware. We do, however, recommend you install a lightning surge protector between the cell antenna and a device to prevent a lightning strike to the antenna from damaging your device and equipment. The antenna does not come with mast pole mount; it comes with two U-bolts which can be used with the attached plate for pole mounting. It allows horizontal or vertical polarization.


	TP514	TP545
Application	3G/4G/LTE	3G/4G/LTE
Gain	9 dBi	11 dBi
Frequency (MHz)	806-960 & 1710-2500	698-960 & 1710-2170 & 2300-2700
