KINDLY TIPS

1.The WIFI Relay support 2.4G WIFI only,doesn't support Mesh wifi system and 5G WiFi network.When pairing,make sure your phone and the relay connected to the SAME 2.4G wifi network.If you SSID and keyword has special character,please change it to fonts and number,or ewelink won't find your SSID
2.Working power is DC 5V only.
3 Any questions,please feel free to email us, you can check Help&Feedback-FAQ-Paring-How to pair a WIFI device in ewelink app also

Description:

The wireless switch supports inching and self-locking mode.Users can add the device to the APP eWeLink to remote control connected appliances.
In self-locking mode, customers can remotely turn on/off connected devices immediately.
When in inching mode, customers can have two wiring ways to select:
Turn on 1s and then auto-off
Turn off 1s and then auto-on.

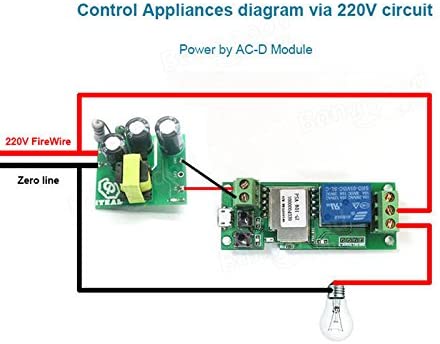

The product enables remote control of home appliances through the mobile application eWeLink, available on both Android and iOS.
Supported functions:

Remote turn on/off
Timing Schedules
Device Sharing
Group Management
Specification:

Dimensions:70.5mm*31mm*17mm
Operating current: 5V DC only(please don't power it with 12V or above power source, phone charger can be used,not included)

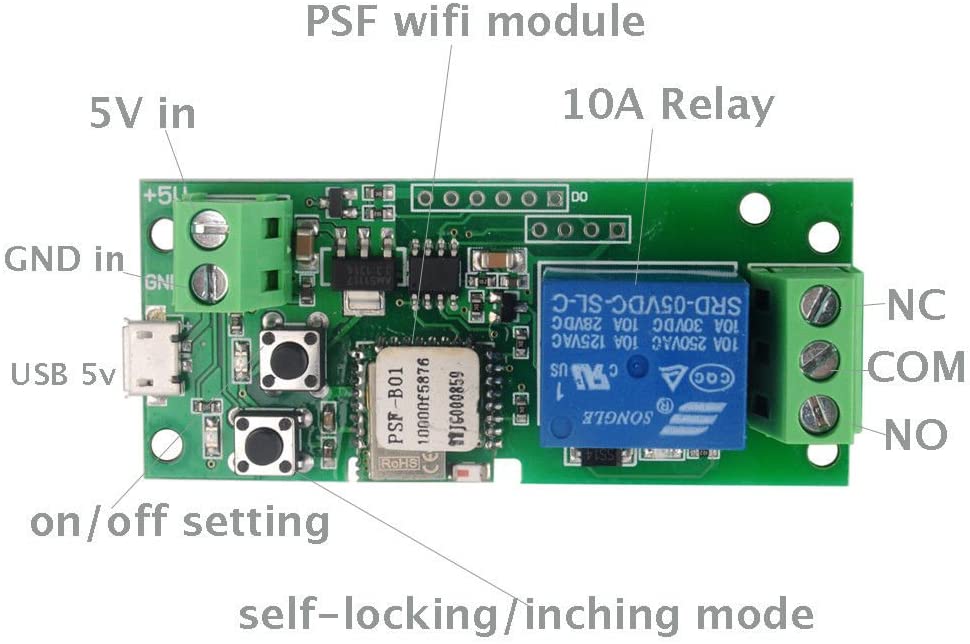

LEDs: 3 LEDs which indicate working mode, wifi status, relay on/off status respectively.
Board consumption: <1W
Standby current: 80mA
Max input current: 10A
Max switching voltage: <250V
Relay lifespan: more than one million times
Electrical insulation resistance 100M
Electric shock voltage: 1000V
Relay maximum pull time: 15ms
Relay maximum release time: 5ms
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40% ~ 80% RH
.Rated switching voltage: <250V,

Package included: 1 *Jog Inching Self-locking WiFi relay delay switch
1*instruction
