Description:
Built-in 520 KB SRAM, external 4M PSRAM
Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
Support OV2640 and OV7670 cameras, built-in flash
Support image WiFi uploadand Support TF card
Support STA/STA+ap working mode
Low-power dual-core 32-bit CPU for application processors
Specification:
Model: ESP32-CAM
Color: Black

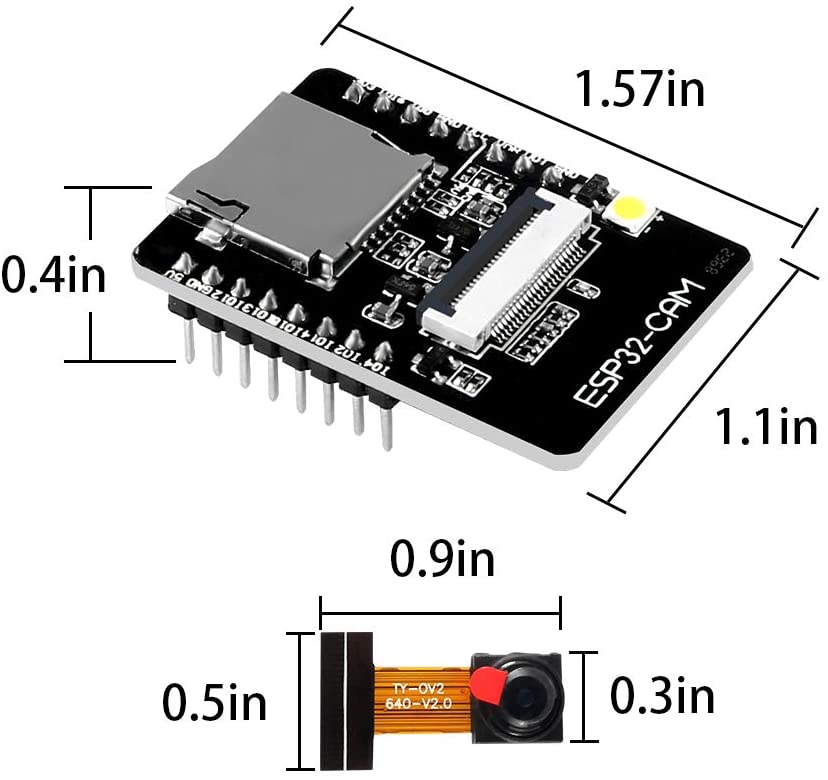

Size: 27x40.5x4.5mm
SPI Flash: Default 32Mbit
RAM: Internal 520KB+ External 4M PSRAM
Bluetooth: Bluetooth 4.2 BR/EDR and BLE standard
Wi-Fi: 802.11 b/g/n/e/i
Support Interface: UART, SPI, I2C, PWM
Support TF Card: Maximum support 4G
IO Port: 9
Serial portRate: Default 115200 bps
ImageOutputFormat: JPEG(Only OV2640 support), BMP.GRAYSCALE
Spectrum Range: 2412 -2484MHz
Antenna Form: Onboard PCB antenna, gain 2dBi
Transmit power: 802.11b: 17+/-2 dBm (@11Mbps), 802.11g: 14+2 dBm
(@54Mbps), 802.11n: 13+/-2 dBm (@MCS7)
Safety: WPA/WPA2/WPA2-Enterprise/WPS
Power Supply Range: 5V
Operating Temperature: -20 ~85 degree celsius
Package Included:

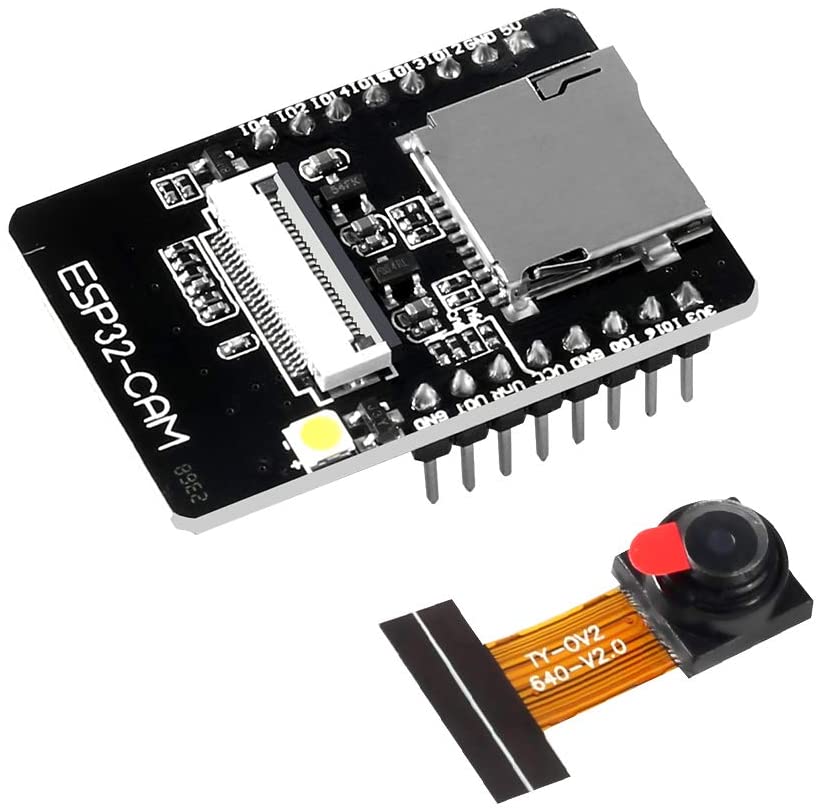

1*ESP32-CAM Module
1*Camera Module
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-3cm differences due to manual measurement.
