Key Features:
1/3" Sony Effio-P CCD Sensor
Signal System:NTSC
Image Sensor :SONY Effio-P CCD
System Synchronization:2:1 Interlace
Effective Pixels Number : NTSC:976(H)x494(V) / PAL:976(H) x582(V)
Horizontal Resolution :800 TV Lines
Electronic Shutter:1/60(1/50)-1/100000Sec
Video Output:1xRCA
Gamma Correction:>0.45
S/N Ratio:More than 52dB (AGC Off)
Lens :3.6mm Pinhole Lens
Sync System:Internal, L.L
Min. Illumination :0.8 LUX/F1.2
BLC:Auto
White Balance :Auto
AGC:Auto
Day/Night:Auto
Power Voltage:DC12V±5﹪
Power Consumption :500mA
Operation Temperature:﹣20℃～+50℃

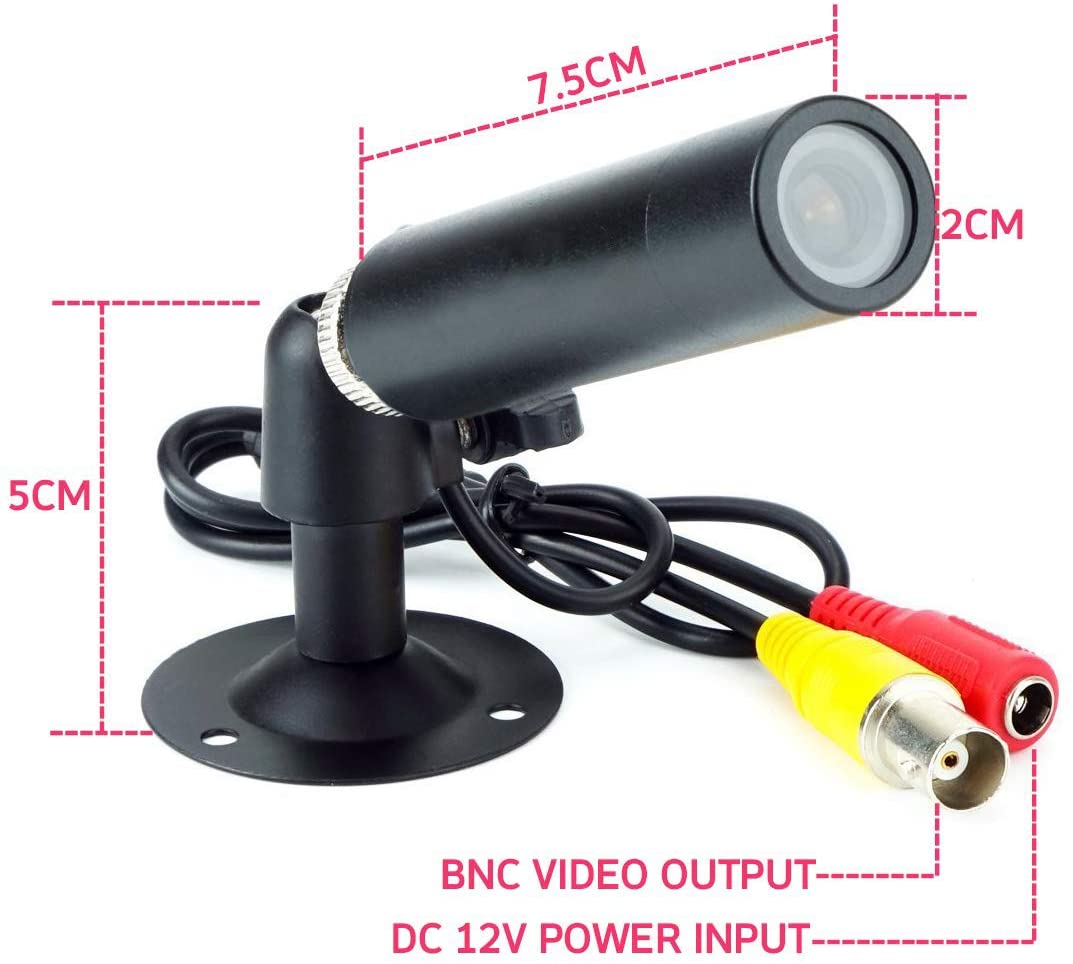

Product Dimensions :￠20x65mm
Product Weight:39g
Packing Size:104x75x55mm
Gross Weight:130g
