Product name：SP21 IP67 2PIN 3PIN 4PIN 5PIN Waterproof Connector, Screw Press Connect Plug Aviation Connector 30A 500V Industrial Conn

product number：EB000040

Shop：BEEelec Official Store

weight：45gram

Shelf time:2020-06-10 00:06:50

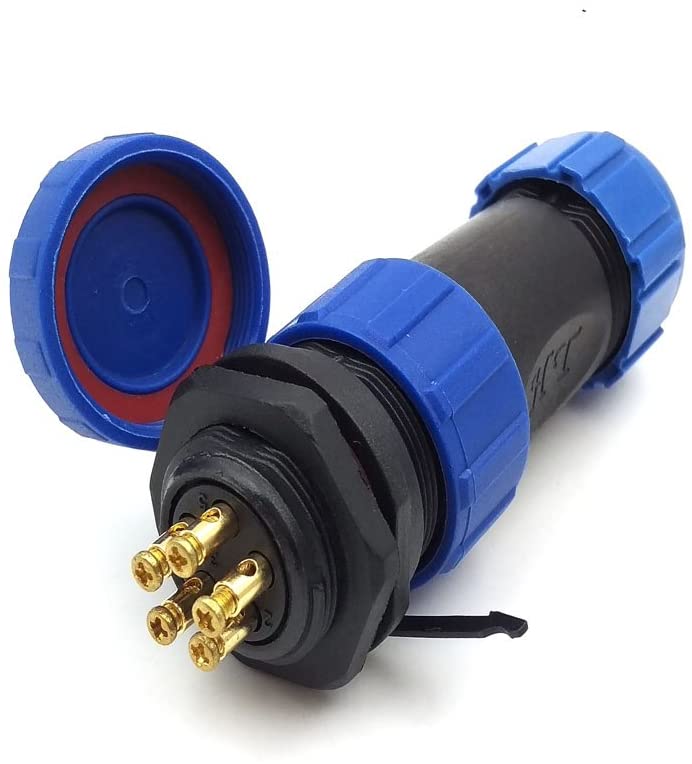

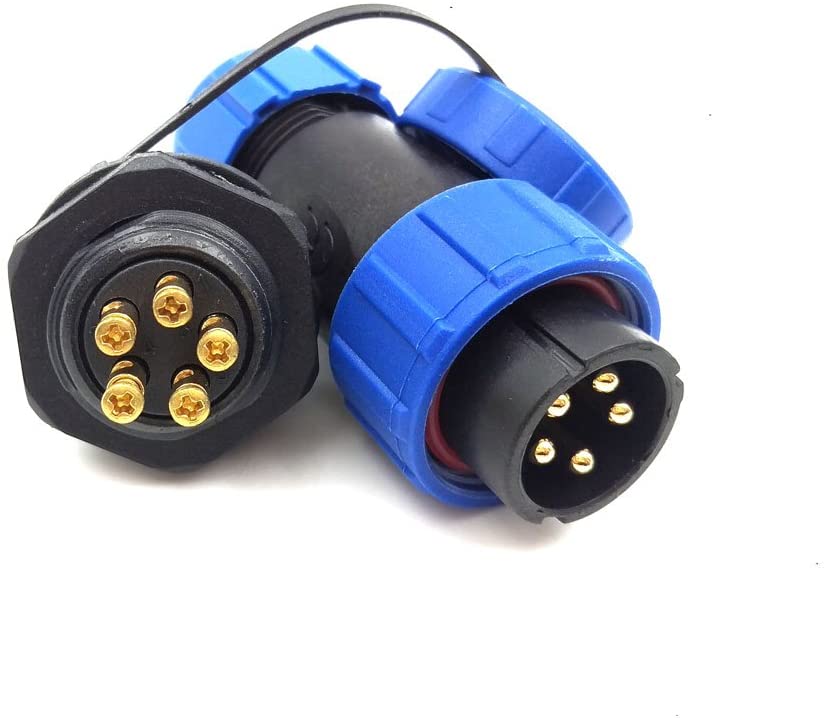

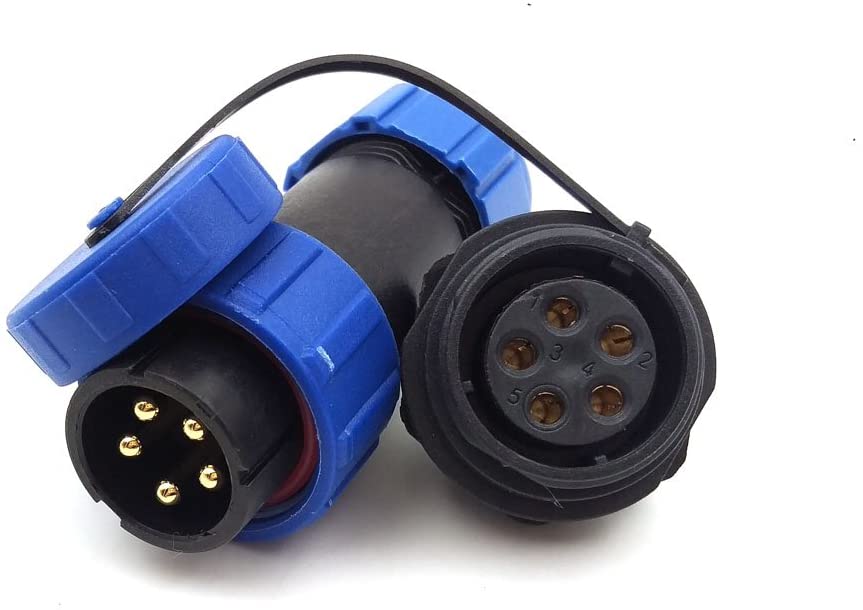

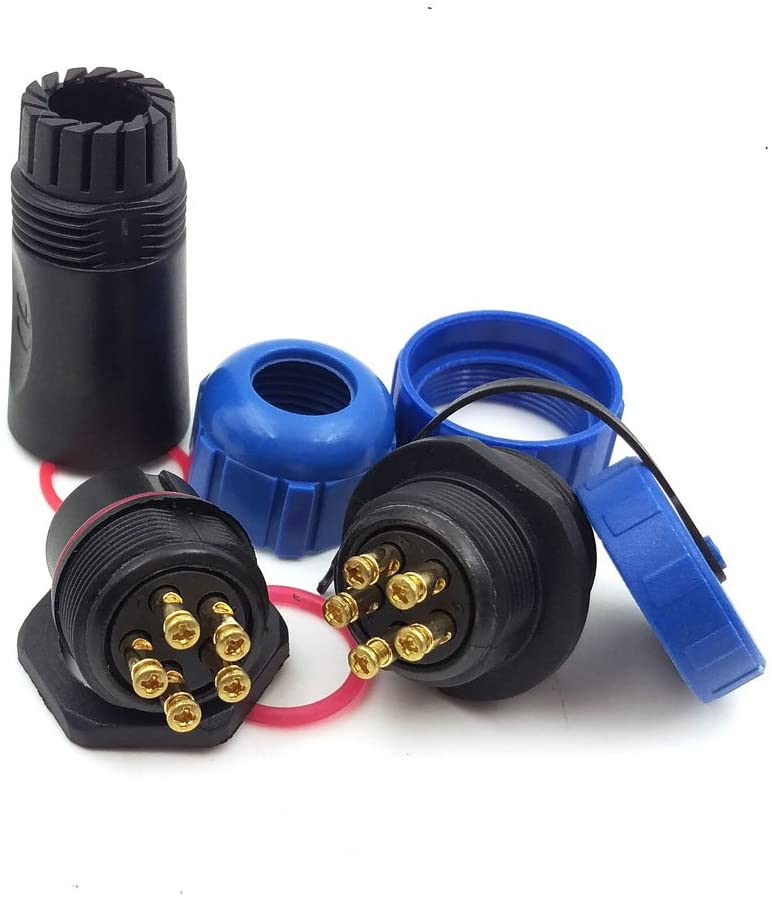

SP21 5pin IP67 waterproof power cable connector, φ21mm panel cut
Contact: φ3mm*2(Gold plated copper), 30A / 500V, Contact resistance: 1 Milliohm
Wire: <1.5mm/AWG14-18, Cable: 6-12mm, whole size: 3.29*1.081 inch / 83.5*27.5mm
Pin number available: 2/ 3/ 4/ 5pin solder free waterproof connector
Professional and trusted waterproof power connector supplier.

Rated carrent(A): 30A
Contact diameter：φ3*2
Termination：Screw press
Rated voltage(AC/V): 500V
Test voltage(AC/V) 1min：1500V
Contact resistance(mΩ)：1
Wire size (mm/AWG)：≤1.5mm/ >AWG14
Cable diameter: 6-12mm
Feature:No need welding
IP Rating:IP67
