Product name：WS20 10pin Metal Power Connector, Electrical Waterproof Power Supply Plug Socket Aviation Bulkhead Connector(10pin, Whol

product number：EB000056

Shop：BEEelec Official Store

weight：46gram

Shelf time:2020-06-10 11:56:21

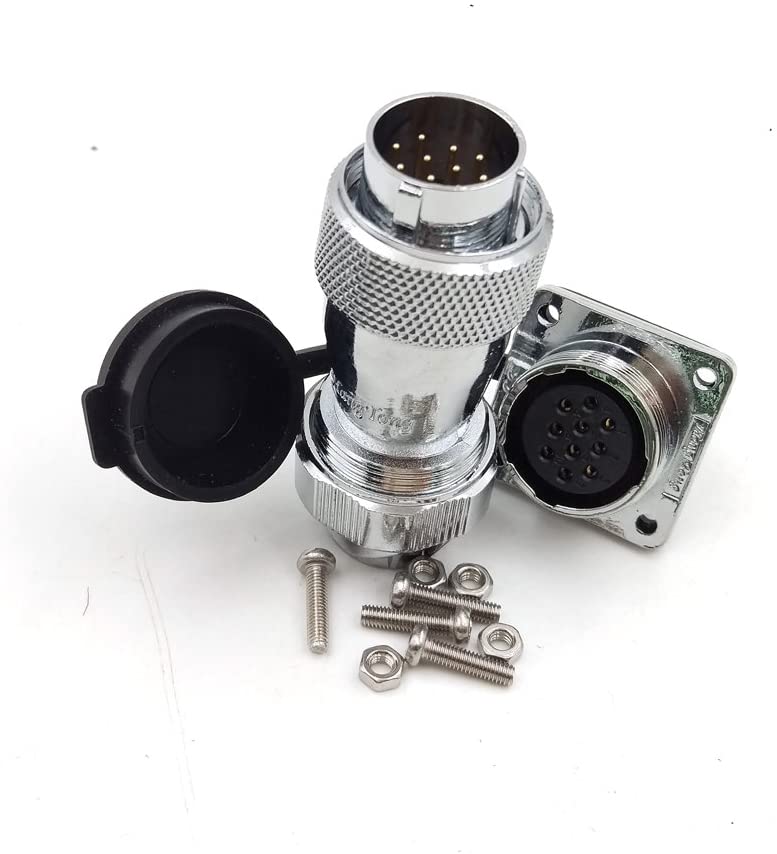

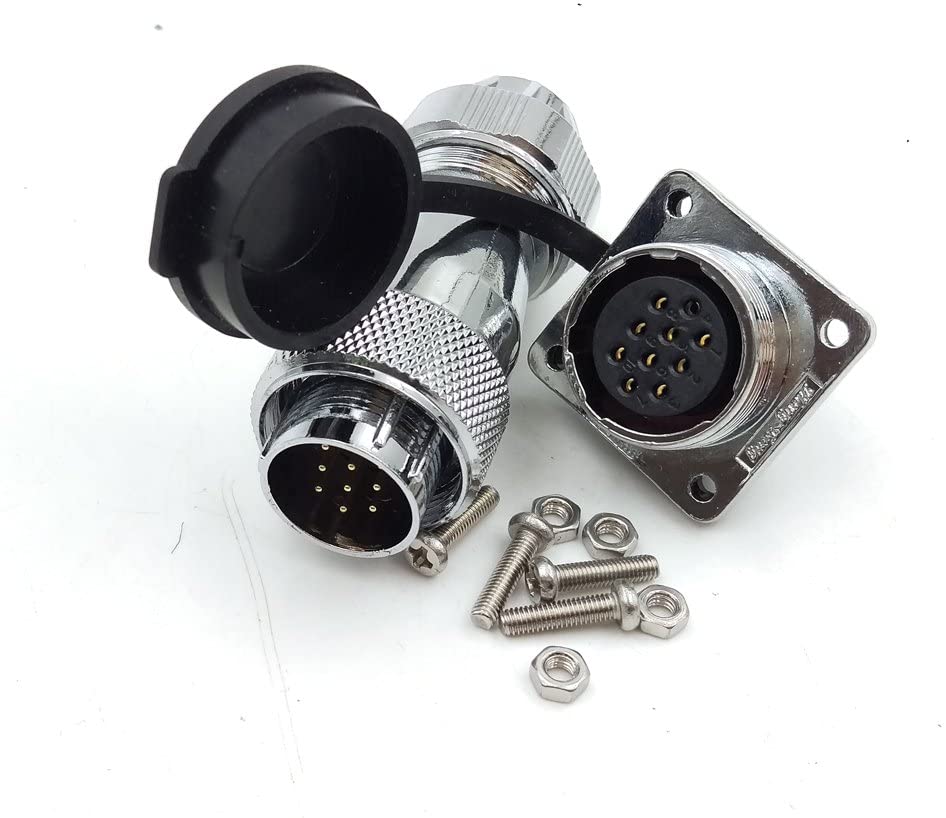

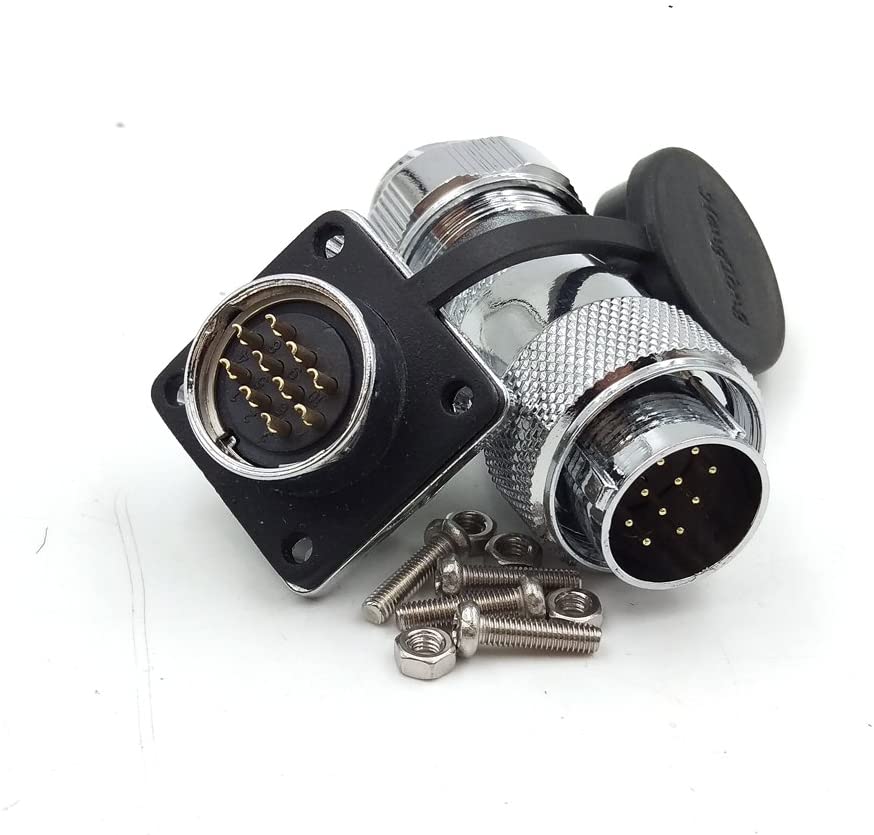

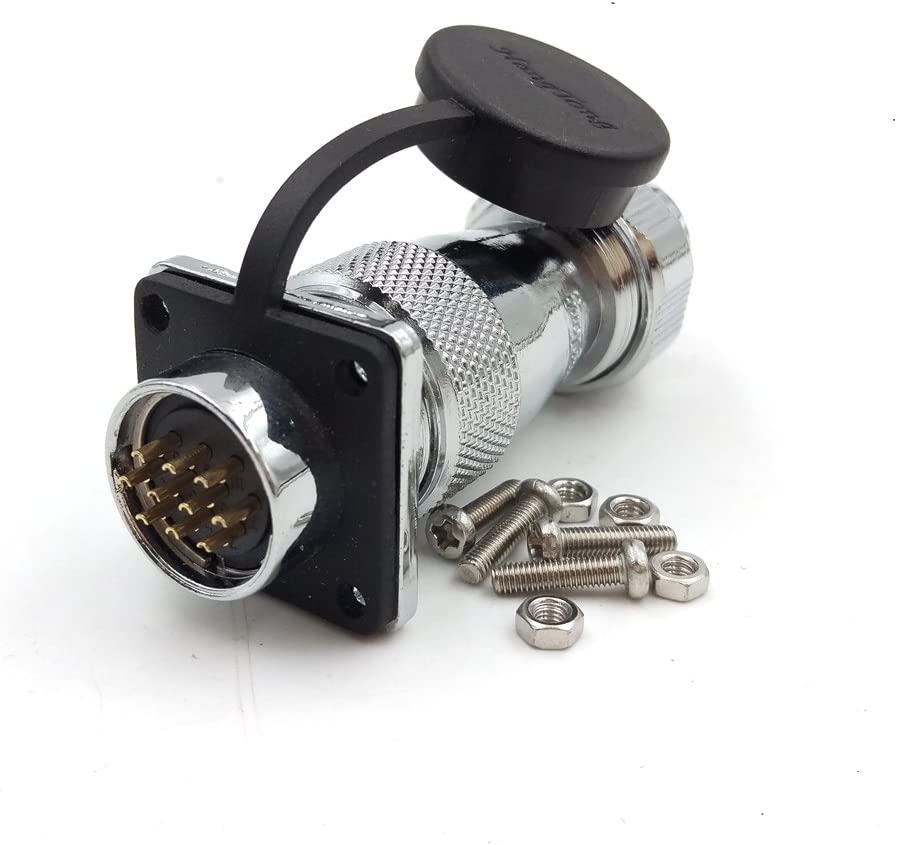

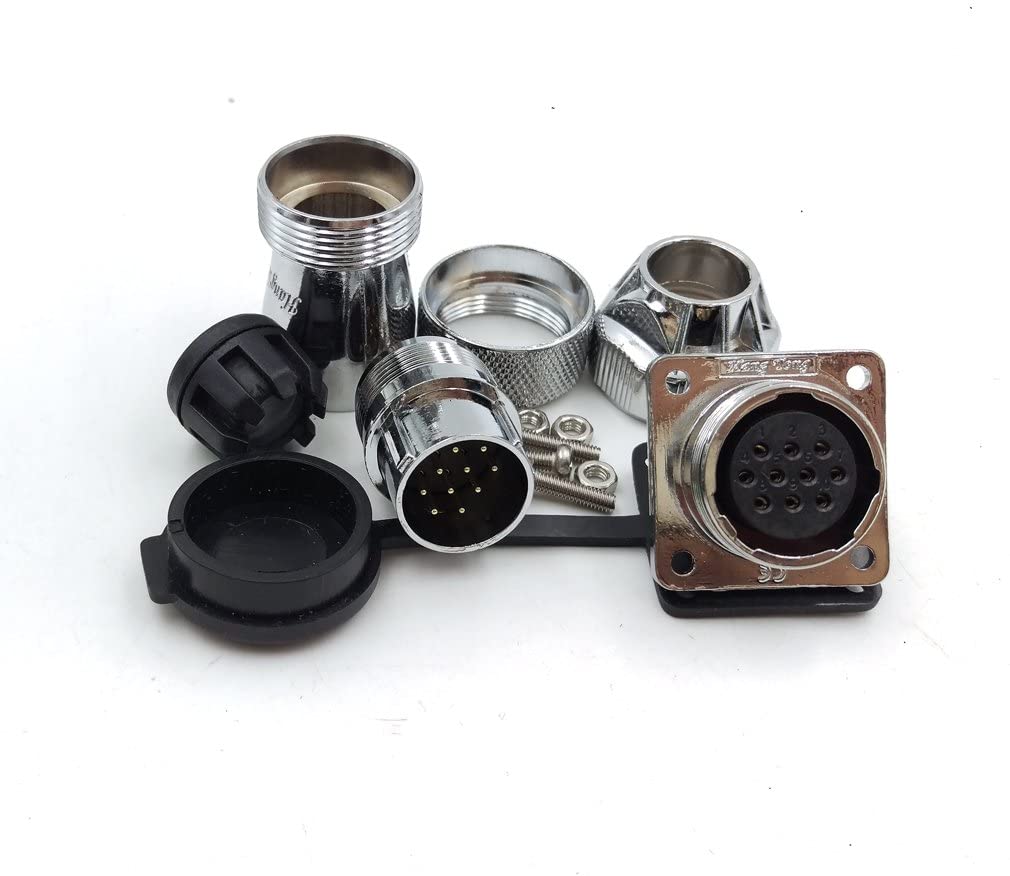

WS20 φ20 metal heavy connector
2/ 3/ 4/ 5/ 6/ 7/ 8/ 9/ 10/ 12pin available
Socket with 4 screw to fix on panel, which is included in shipping item
with location pin on plug and socket for better location plug
Cable diameter: φ10~10.5mm

Current Type:AC/DC
Model:metal connector
Coupling: Thread/buckle connection
Shell Material: Zinc alloy with chrome plating
Contact material: brass with gold plating
Termination: Welding
Mating cycle: ＞500
Temperature range: -30℃~+85℃
Rated current:φ1.5-10A，φ1-5A
WorKing voltage: 500V/AC
Test voltage: 1500V
Contact resistance: φ21.5-2.5mΩ，φ1-5mΩ
Pin number available: 2/3/4/5/6/7//9/10/12pin
IP rating: IP65(waterproof cap on socket)
Pin number available: 2/3/4/5/6/7/9/10/12pin
