Description:
Widely used in aviation, navigation, construction site, port, dock, and some other sealing electronic equipments.
Design with a black short rubber tube on the end, mainly used for the electronical connection between the cables.
Waterproof and really a great apparatus electronic connector.
Specificatios:

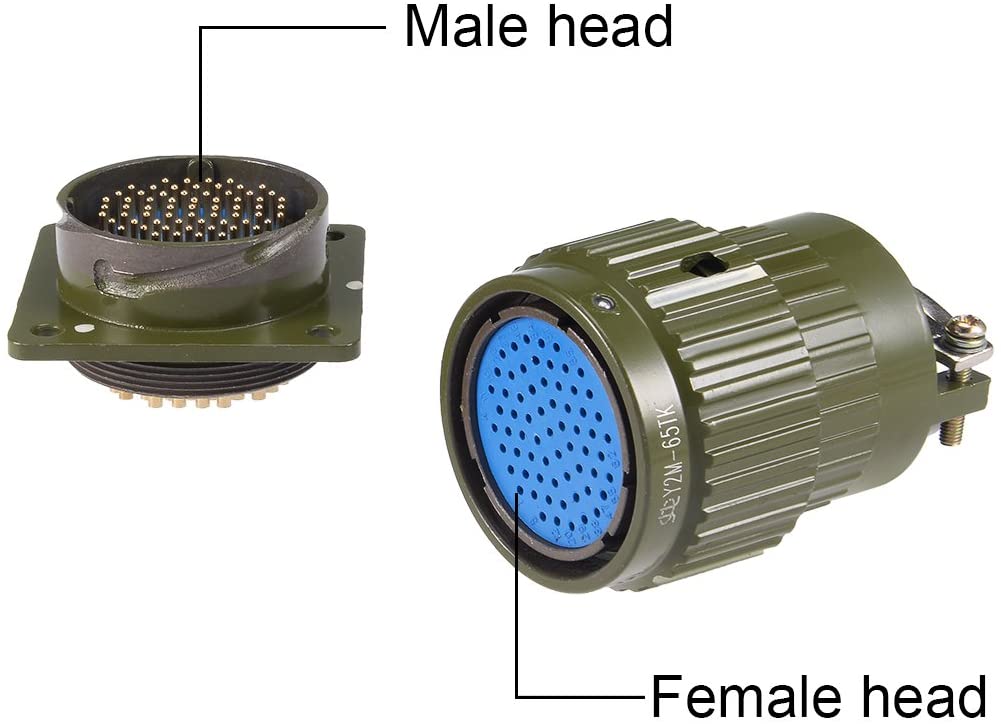

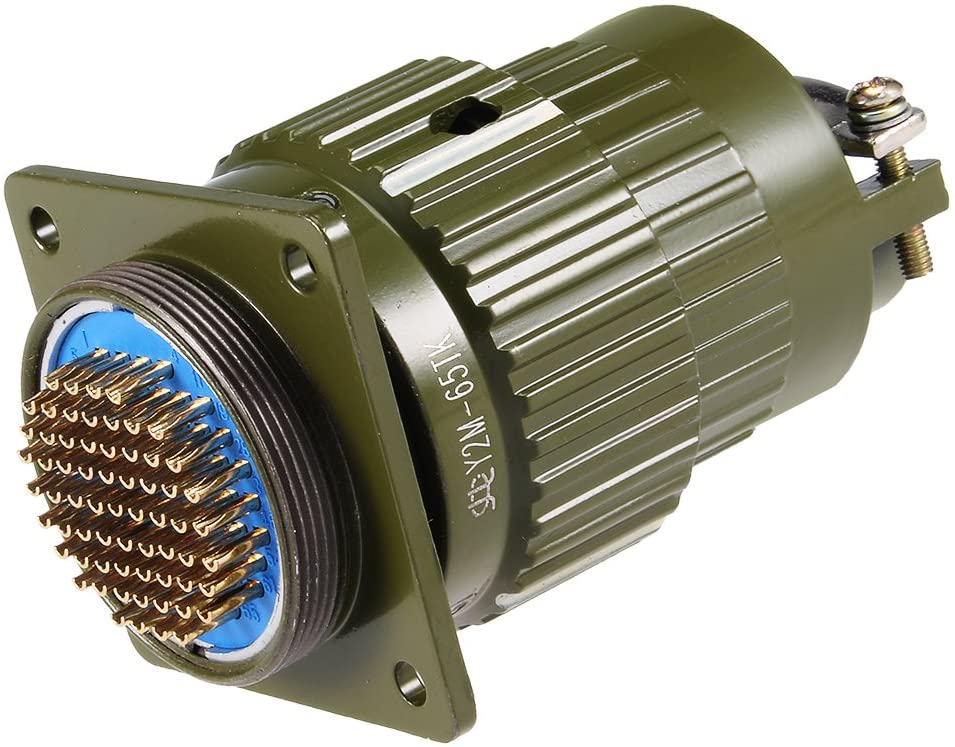

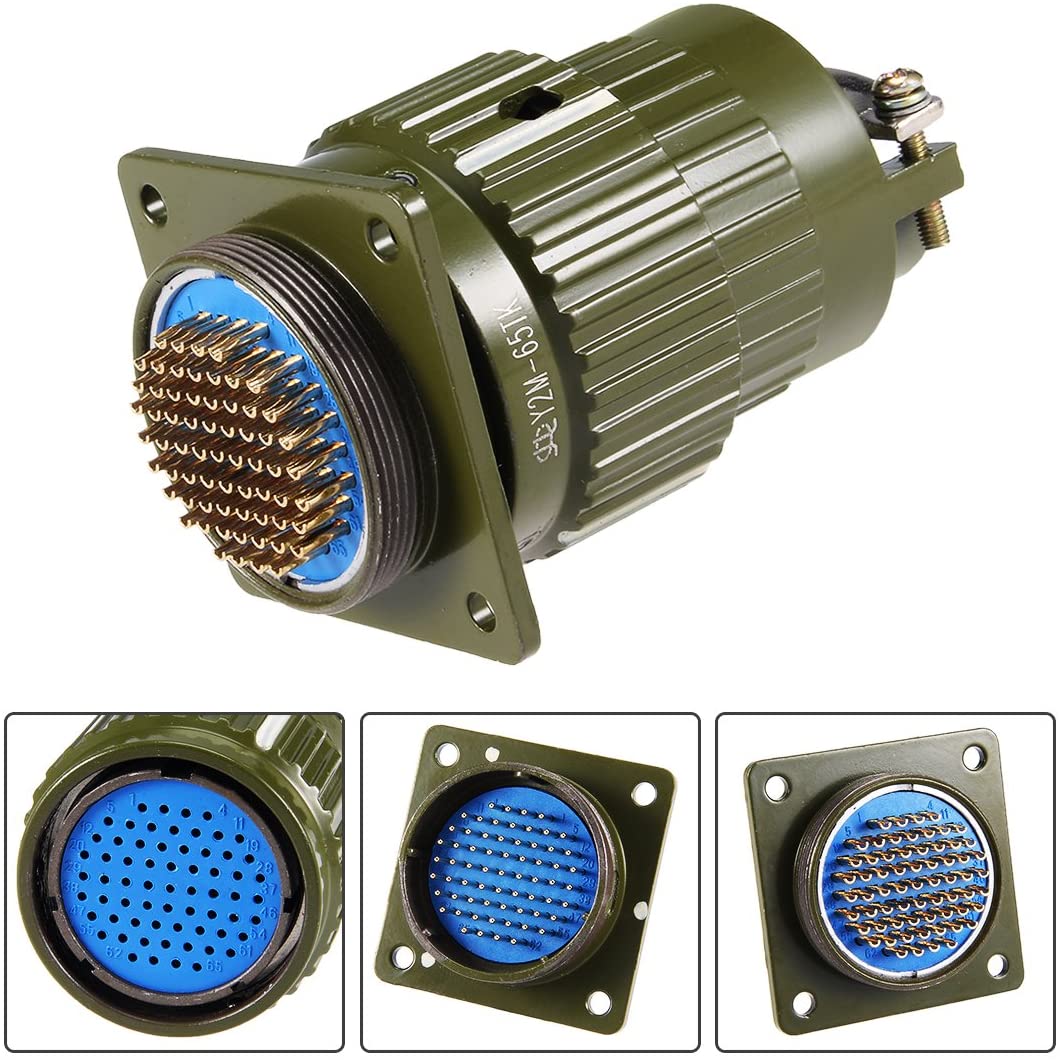

Product Name: Aviation Connector
Model: Y2M36-65TK
Terminal Number: 65 Terminals

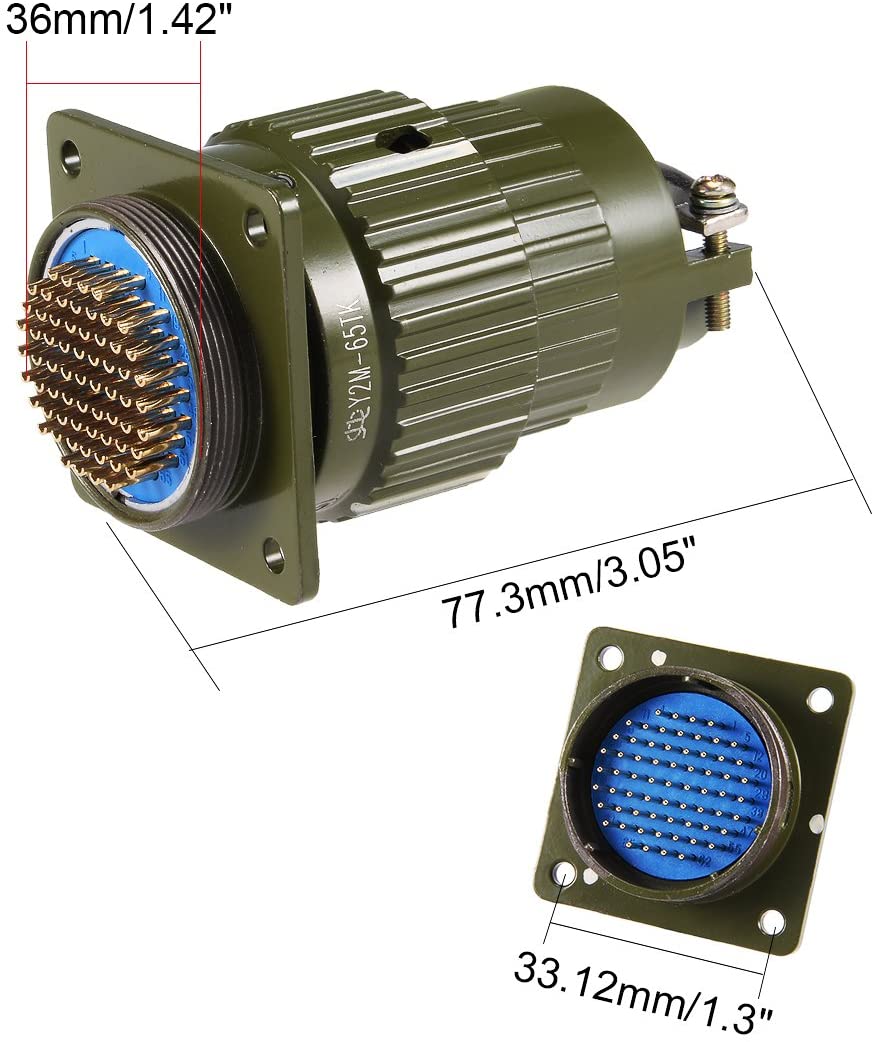

Thread Dia: 36mm/1.42inch
Net Weight: 146g
Coupling: Thread couping
Insert Material: PPS
Shell Material: Zinc alloy with chrome plating
Contact Material: Barss with gold plating
Color: Silver Tone, Black
Contact Resistance: 500Mohm
Temprtature Range: -25~80C
Qualification: CE
Package Include:
Package Content: 1 x Aviation Connector
