Commodity details
- Product name：RP-SMA Connectors PCB Edge Mount jack Straight Receptacle Front Bulkhead for 1.57 Board
- product number：EB-007-0112
- Shop：BEEelec Official Store
- weight：0gram
- Shelf time:2021-01-26 17:31:06
Features:
- Pcb Mount, Panel Mount, jack, ?Straight/180～, 50次, Edge Mount, bulkhead,RP;
- Excellent electrical performance up to 18GHz with low reflection;
- Thread type coupling mechanism ensure small loss and high security in compact design;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of SMA Connectors:
- Aerospace and Defense: Hand-held field Device and Instrumentation
- Medical: Instrumentation
- Commercial Vehicle: Bluetooth and GPS
- Telecommunications: Wireless Base Stations, Cellular Mobile System
- Data/Communications:Wifi, WiMAX
- Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System
Techinial Datasheet:
Electrical Characteristics
- Impedanceㄩ50 ohm
- Frequency Range:?0~18 GHz
- VSWR:?Straight type 汨 1.3max / R/A type 汨 1.5max?
- Dielectric Withstanding Voltage:1000 V rms?min for RG142, RG405
750 V rms min. for RG316, RG402
500v rms min. for RG178? - Working Voltage:?500 V rms max. for RG142, RG405
375 V rms max. for RG316, RG402?
170 V rms max. for RG178 - Center Contact Resistance?汨 6.0 m次 ?(Milliohms max.)?
- Outer Contact Resistance 汨 2.0 m次 ?(Milliohms max.)?
- Insultation Resistance 沖 5 x 103 m次 (Megohms min.)
Mechanical Characteristics
- Coupling: 1/4-36 thread
- Contact Retention: 15 in-lbs min.
- Coupling nut torque: 30 in-lbs. min.
- Durability(mating) 沖 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Environmental Characteristics:?-65～C ~ +125～C?
- Vibration: MIL-STD-202 Meth.204
- Corrosion resistance: MIL-STD-202 Meth. 101
Material:
| Part | Material | Finish |
| Body | Brass | Gold?Plated |
| Center Contact Pin | Brass | Gold Plated |
| Insulator | TEFLON | -- |

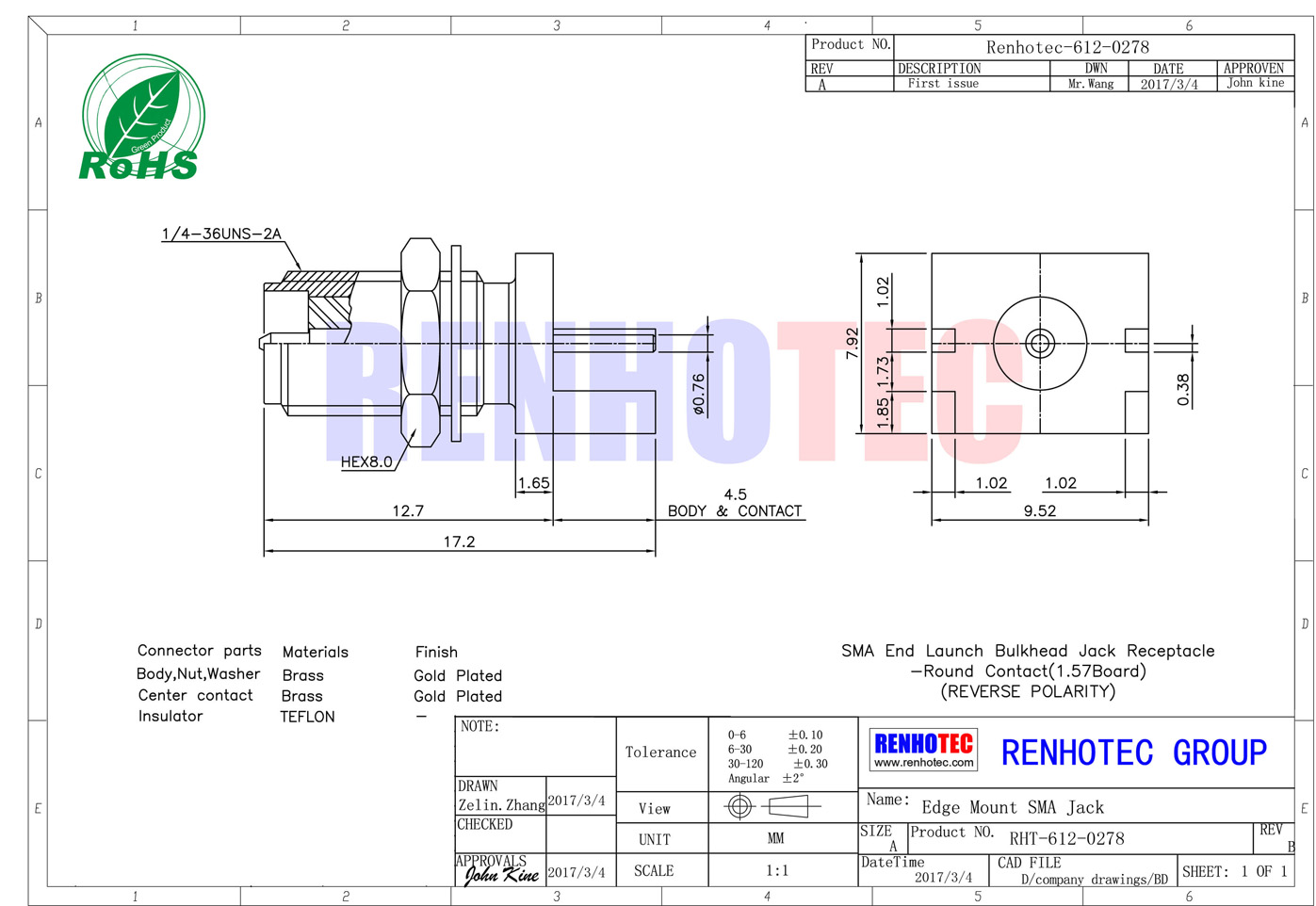

Drawing:
