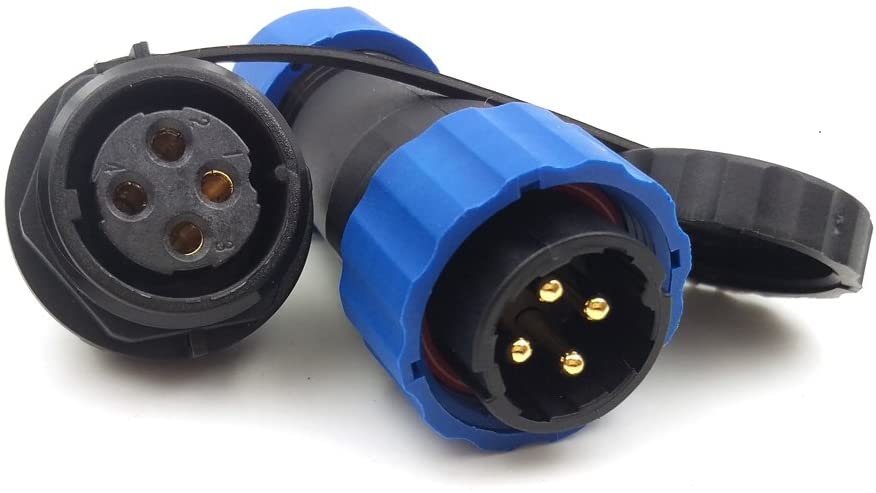

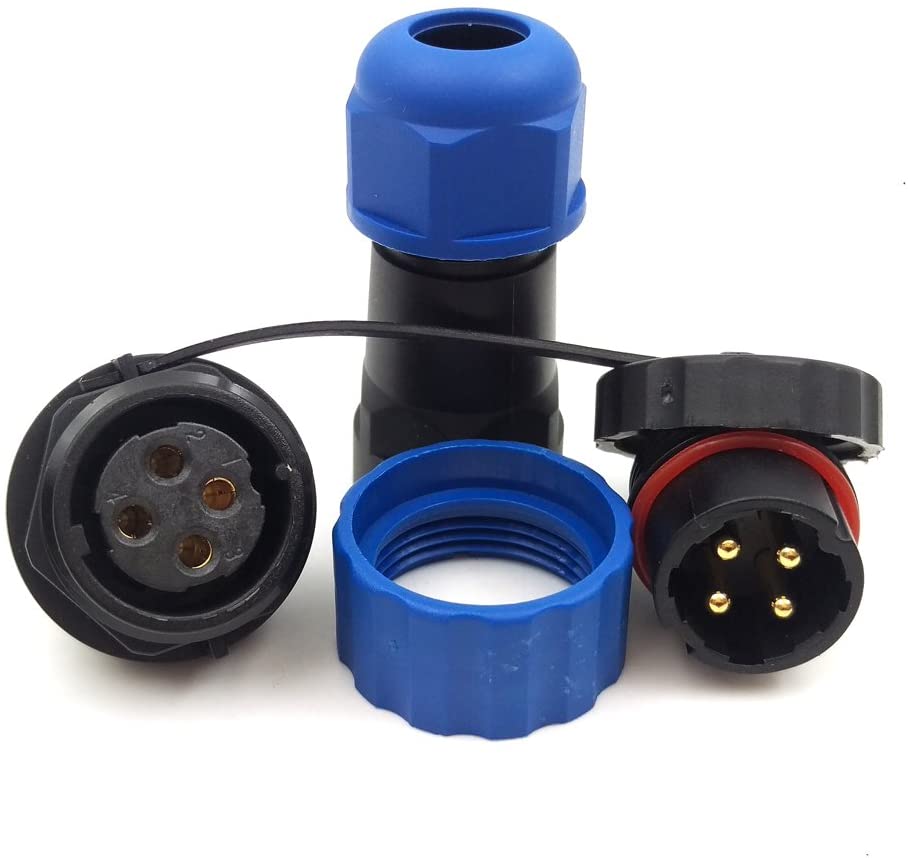

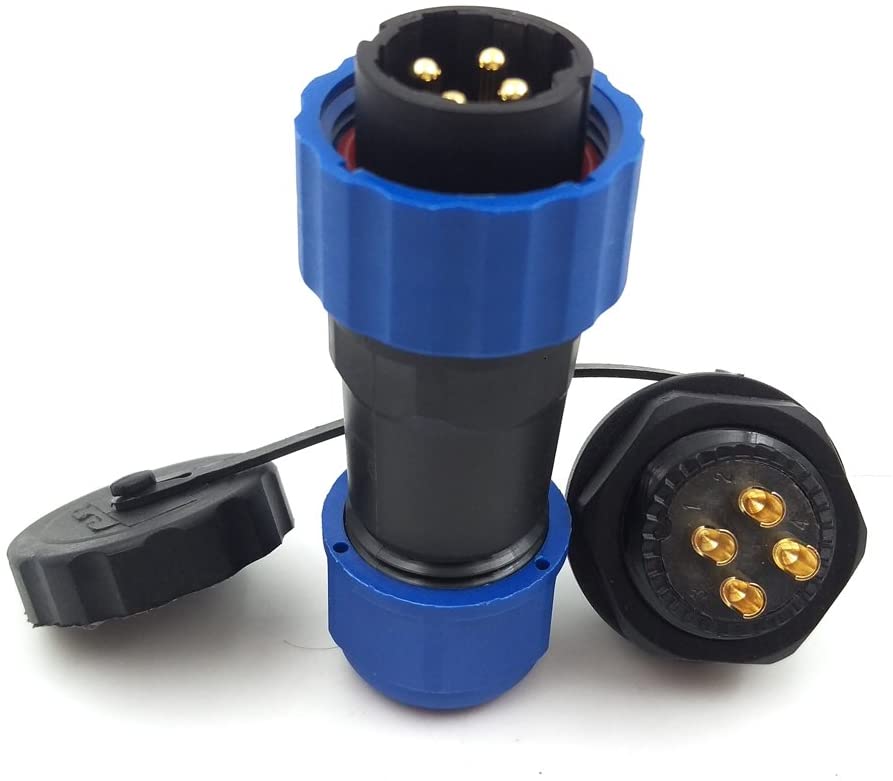

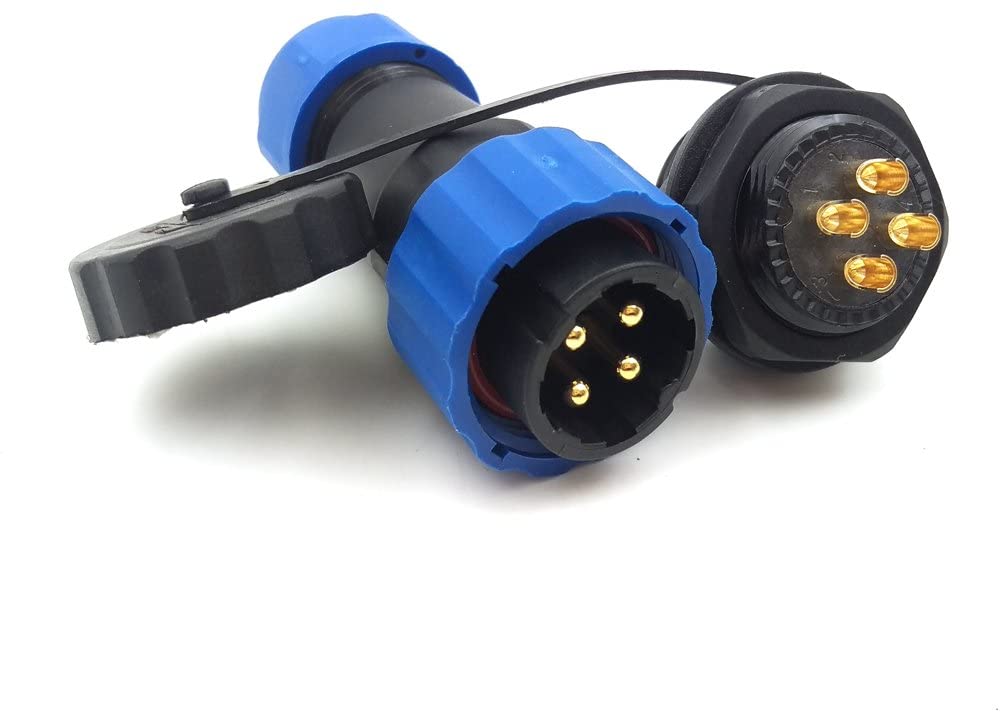

• SD20 4pin IP68 waterproof power cable connector, φ20mm panel cut
• Contact: φ2.8mm*2(Gold plated copper), 25A / 250V, Contact resistance: 1 Milliohm
• Wire: <2.5MM/ AWG12-16, Cable: 6-12mm, whole size: 3.39*1.12inch / 86*28.5mm (L*φ)
• Type: Plug-male / socket-female, Pin number available: 2/ 3/ 4/ 5/ 6/ 7/ 9/ 12pin
• Professional and trusted waterproof power connector supplier

Specific features are as follows:
1. Operating temperature: -45 ° C ~ 105 ° C
2. Relative humidity: 90% ~ 95% (40 ± 2 ° C)
3. Salt spray: 5% NaC1 mist in 48h
4. Sealing: IP68 (2m depth 2h not deep water)
5. Working Current: 25A (2-5pin), 15A(7pin), 5A(9-12pin)
6. Working Voltage and Withstanding Voltage (Sea Level) Working Voltage: 250V (AC) Withstand Voltage: 2500V (AC)
7. Insulation resistance: 2000MΩ under normal condition
8. Contact Resistance: 1MΩ(2-5pin), 2MΩ(7pin),5MΩ(9-12pin)
9. Apply wire: <2.5MM/ AWG12-16---2-5pin,<1.5MM/ AWG14-18---7pin,<0.9MM/ AWG14-20---9-12pin 10. Apply cable diameter: Φ6.0 ~ 12.0mm
11. Mechanical life: 500 times

12. Whole size: 3.39*1.12inch / 86*28.5mm (L*φ)

Specifications
Material: flame retardant nylon
Welded pinhole: beryllium bronze
Seal: EPDM rubber ROHS environmental protection materials
Gender: male female
Combination design style: welding
Shell shape: round
High pressure: ≥ 1000V / 1Minute (under normal 2.5KV water pouring 1.0KV)
Sealed protection: 1meter water depth for two weeks
Strong anti-corrosion, anti-light hydration and other functions
For machinery and equipment, outdoor LED display.
