Commodity details

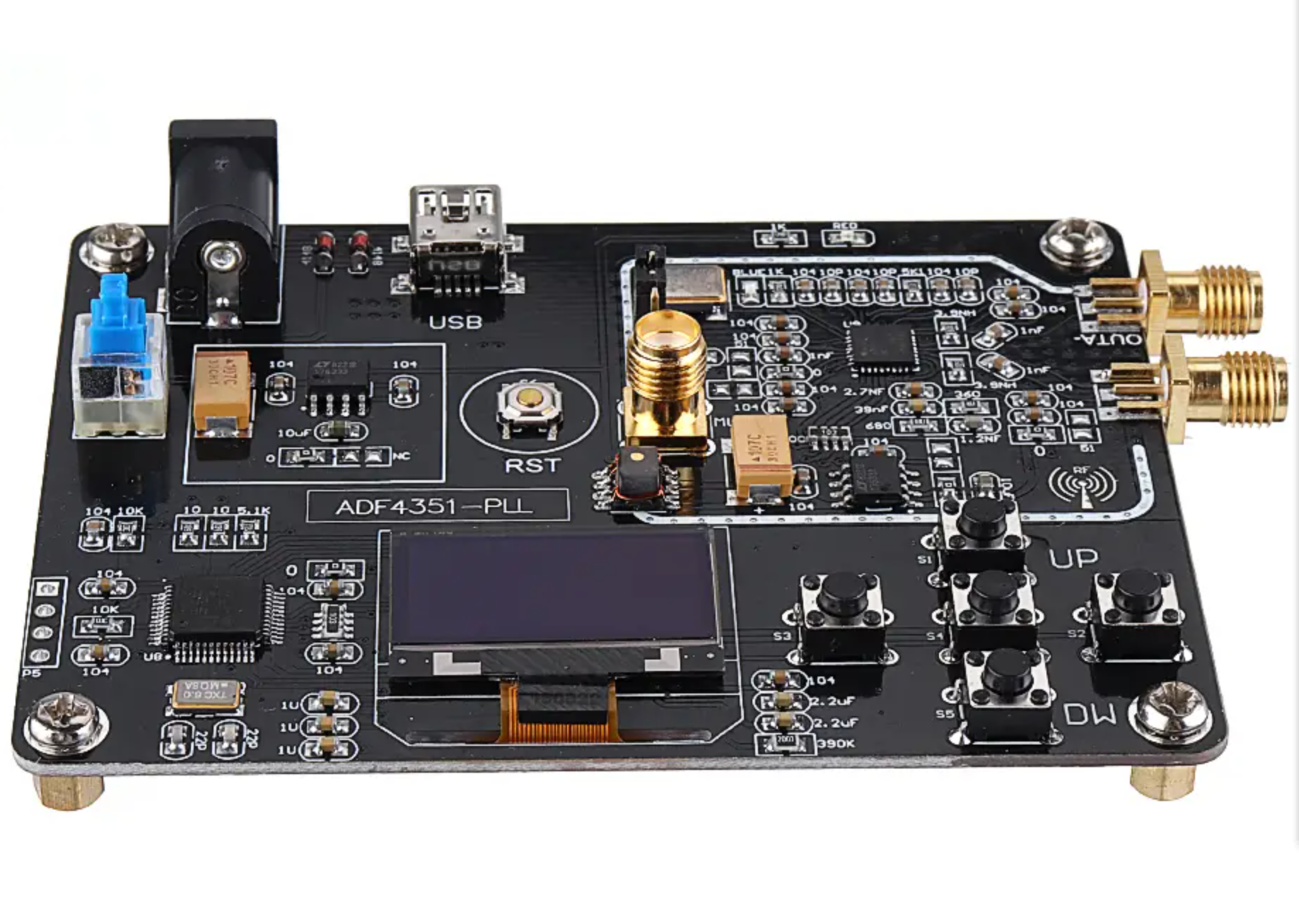

- Product name：Module 35M-4.4GHz RF Signal Source Frequency Synthesizer ADF4351 Development Board
- product number：EB000007
- Shop：BEEelec Official Store
- weight：0gram
- Shelf time:2020-06-07 11:06:00
With OLED display
Host computer USB & serial port
Integrated key operation
Wide range voltage supply
Good man-machine interface Many improvements on the phase noise, phase spurious and loop filter
Much enhancement on the power filter and ground processing
Module can achieve 35MHz - 4.4GHz frequency output, point frequency, sweep, frequency hopping and other basic functions
Parameters:
Dimensions: 88mm * 67mm
Power supply: 5V-15V (DC 5.1MM); 5V (USB)
Bandwidth: ADF4351: 35MHz - 4.4GHz; ADF4350: 137MHz - 4.4GHz
Module step: 100KHz(min)
Frequency error: ± 1KHz
Output: OUTA OUTB two way
Module phase noise: better than -100dBc @ 10KHz (noise is different with different band phase)
Module output power: 7dBm (MAX)
Module interface: The external communication port of the STM32 USB can be configured to USB or analog serial port (in default)
Module program download mode: SW module, three-wire system (GND SWCLK SWDIO)
Packing includes:
1 x Module
1 x USB-mini line
1 x BNC male head to SMA male high-frequency cable
