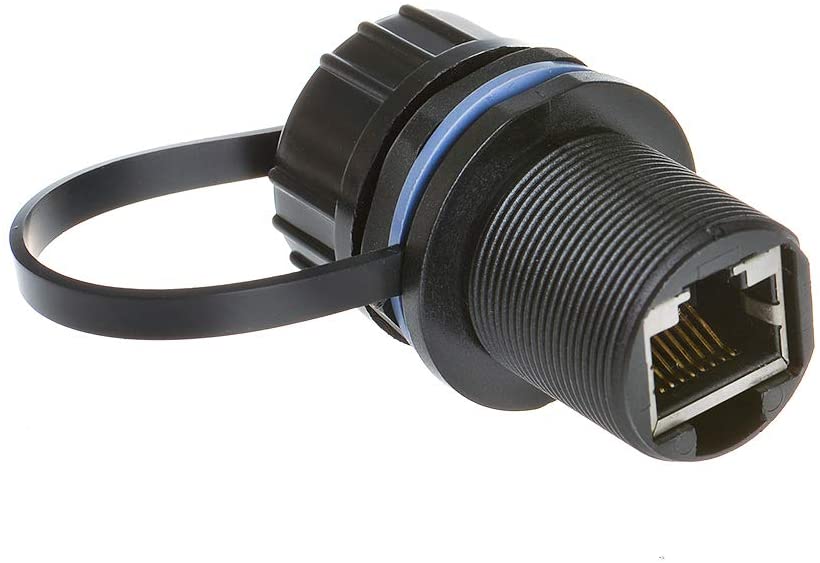

• Shielded RJ45 female to female field installable connector. Provides feed-through Cat5/5e/6 ethernet connectivity for data and PoE in industrial environments.
• NO ATTENUATION:The socket contacts are nickel-plated phosphor bronze alloy plugs, and the socket does not need to break or interrupt any connection, so there is no signal attenuation.
• EASY INSTALLATION:No soldering, no installation tools, just plug the standard crystal head directly for quick installation.

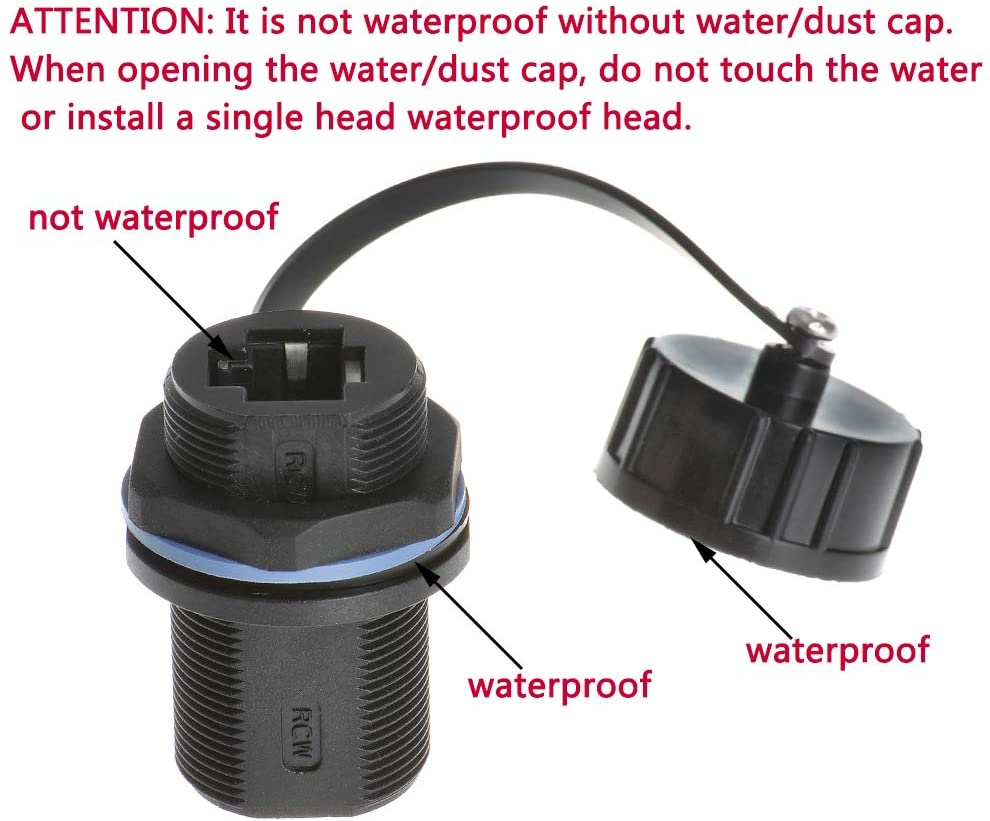

• WATERPROOF:The shielded industrial panel mount bulkhead includes a water/dust cap that meets IP67 Water Protection. It is not waterproof Without water/dust cap.
• Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to contact us and we will provide a full refund.

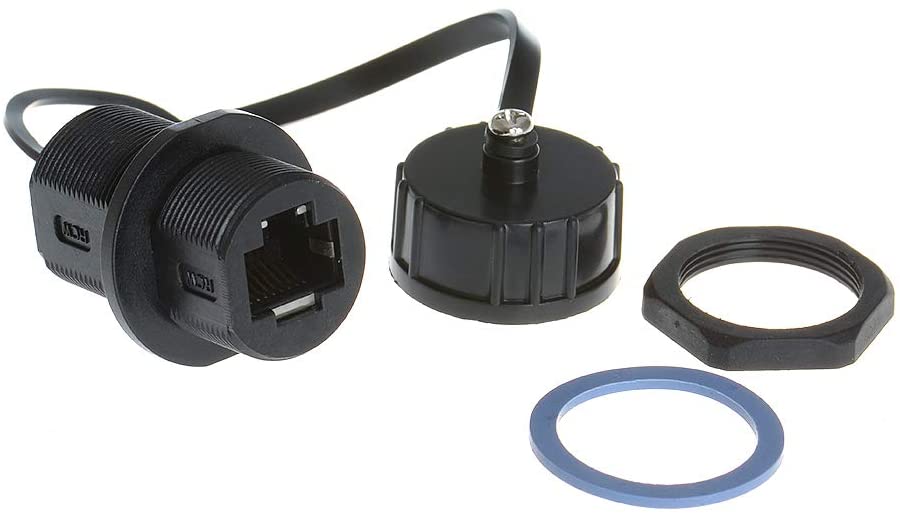

The Shielded Industrial Panel Mount is a Waterproof Ethernet LAN Cable Connector. Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference.

Specifications:
Color: Black
CNBTR Material: Plastic + Metal
Connect Port: RJ45
Cable Core: 8
Pins:8P8C
Withstand Voltage(AC.V)1min: 1000V
Contact Resistance: less than 30mV
Insulation Resistance: more than 500MΩ
Durability: more than 500 mating&unmating cycles
Insulated parts: High performance engineering plastics
Hardware metal: Zinc alloy(pearl hard chromium)
Contact pin: Copper alloy(gold-plated)
Working Temperature: -40°C-105°C
Total Length: approx. 36mm/1.42inch
Mounting panel thickness:1.5~10mm(not included)
Hole Size:20.8mm

Package Included:

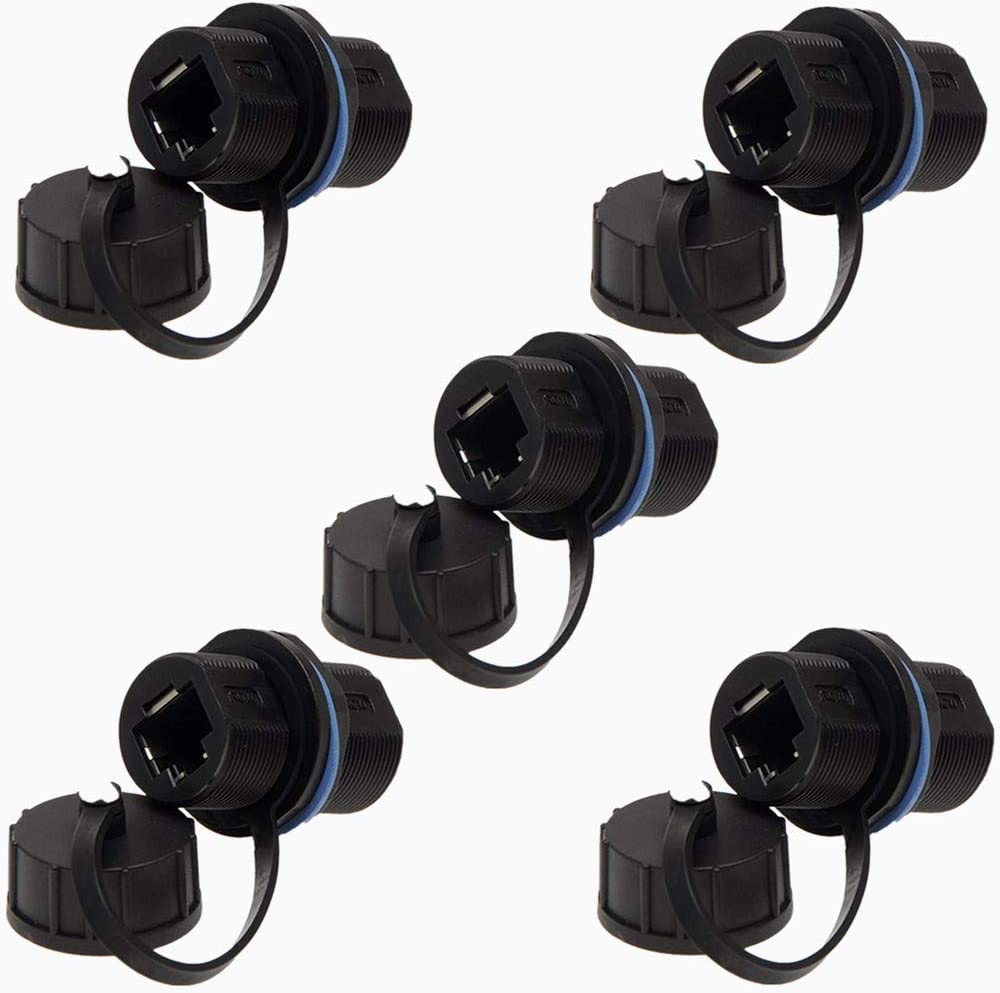

5x Shiled Waterproof RJ45 Connector
